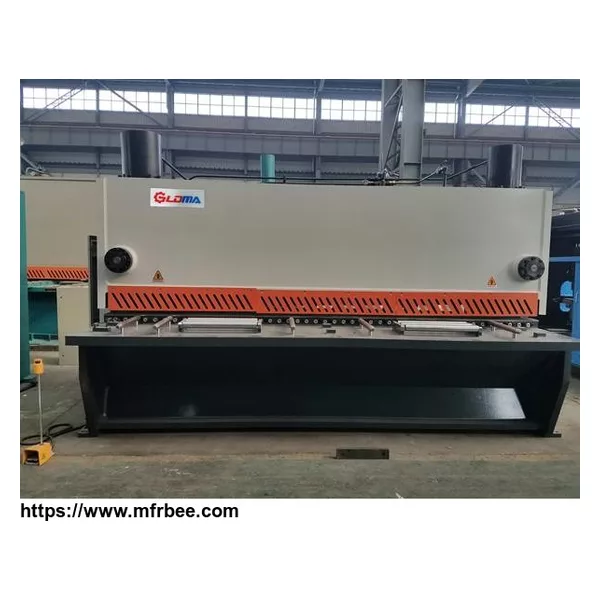

QC11K-CNC Hydraulic Guillotine Shearing Machine-DELEM DAC360 System

Minimum Order
1
Packaging
N/A
Delivery
15 Days

1. The design of the guillotine shear
STANDARD EQUIPMENT
1. DELEM DAC360 CNC controller system.2. Linear guide rail and ball screw accuracy of 0.01mm(HIWIN,TAIWAN).3. Servo motor driving the controller4. Backgauge X-axis servo control5. Steel mono-block construction.6. DELTA frequency converter7. Standard electrics from Schneider,France.8. Standard oil tube connectors from EMB Germany.9. Standard valves and oil pump from Bosch Rexroth Germany.10. Standard main motro from Siemens Germany11. Hydraulic and electrical overload protection12. Light guards ensure the safety of operators during operation(optional)

Delem DAC360 CNC Controller:

1.4.7” monocolor Bright LCD screen2.High-quality foil cover with integrated menbrarne switches3.Program memory of up to 100 programs, each program have 25 steps4.Back/front gauge control, Cutting angle control cutting clearance control and cutting stroke control5.Retract function6.Stroke length limitation7.Pressure control8.Manual movement of all axes9.Sheet thickness measurement10.Second servo axis(DAC 362s)11.Sheet support
DETAILED PICTURES
DELEM DAC360 CNC Controller:Controller can adjust automatically after Input thickness.calculate descending strokeInput shearing length.adjust automatically after input the material code and thickness code.Four materials: Thickness of steel plate, copper plate,stainless plate and aluminum plate can be calculated automatically from 0.1 to 99.9mm.
Main motor: Siemens GermanyOil pump: Bosch Rexroth GermanyGerman motor and pump ensure stable performance,longer service life and lower noise during the operation.
Ball screw&linear guide: Hiwin, TaiwanHigh-performance ball screw and polished rad structrue,guarantee the positionging accuracy,unique timing transmission mechanism,reliable an stable.
Sealing rings:NOK, JapanHydraulic Valve: Bosch Rexroth Germanyeffectively prevent the problems caused by hydraulic oil leakage.
Casing tube: EMB, GermayThe German EMB sleeve and connector effectively reduce the increase in weld slag and facilitate the flow of oil.It makes the machine run more stable.
High-performance alloy cutter:High-quality alloy cutter that can meet the requirement of impacting load high wear resistance generating when cutting plates.
Electrics: Schneider, FranceFrenquency convertor:DELTA, TaiwanAdvanced electrical components and scientific lines can effectively prevent the swing of the x axis from positioning.
Foot pedal: KACON South KoreaThe structure of science greatly reduces the probability of error operation and improves the convenience and safety of operation.
Other details of the CNC guillotine cutting machine:
