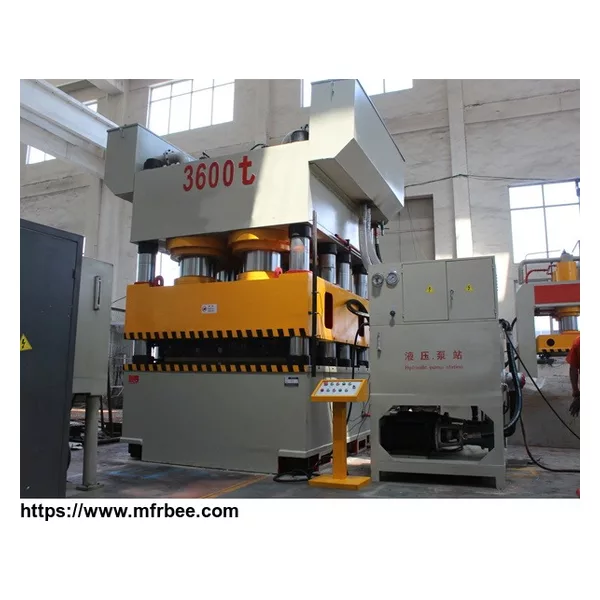

YL78 Series Hydraulic Door Skin Press Machine

Features of YL78 Series Hydraulic Door Skin Press Machine

1. This machine is characterized by high efficiency, convenient and safe operation, energy conservation, attracting appearance, and low cost.2. The machine is invented and continuously improved by our experienced engineers with rich experience, making the machine both simply structured and well performed. It takes just a few minutes for a worker to master operation.Equipment conditions:1. The equipment work area temperature: 0 ~ 50 ℃ (+ / -)2. Power supply: three-phase four-wire system 380V, 50HZ, voltage fluctuation range of 380V plus or minus 10%3. Cooling mode: water cooling device4. Hydraulic system use medium: no. 46 anti-wear hydraulic oilProgram:1. Working pressure, speed, and stroke can be set in a certain range according to different technological requirements. 2. Independent power mechanism and electrical system are controlled by press-button enabling realize manual, semi-automatic, and automatic operation.Main Structure:Eliminate internal stressThe machine body is made of 45# steel and treated with internal stress elimination after being weld.The cylinder is made of 45# forging.Piston rod is made of 50# steel (nitrided)Rigidity up to HRC45-50 Two operation modes:Electric Mechanize and semi-automaticBoth of them are controlled by the bottom switch.Working pressure, pressing speed and slide stroke can be set in a certain range according to different processing requirements.

PLC (Programmable Logic Controller) + HMI (Human Machine Interface)3 operating ways for choiceRuler transducer position (adjustable by HMI) Pressure transducer (adjustable by HMI)Footswitch (as safety)Independent electrical and hydraulic power mechanismSimply structured and well performed for energy saving

	Hydraulic door skin press machine
Right side view of the door making machine
	keep
Six high-performance cylinders:The pressure is more evenly distributed on the workpiece and is easier to maintain.
	Hydraulic Station:With metal cover, Safe & Clean.
Main Motor:Low noise, strong energy,long service life.
	PLC controller:Multi-function and the operation is more simple and convenient.
Molds can be designed to satisfy different demands.→Lots of patterns can be chosen.
	The operation process
Our customer an products

Design of the door skins:
