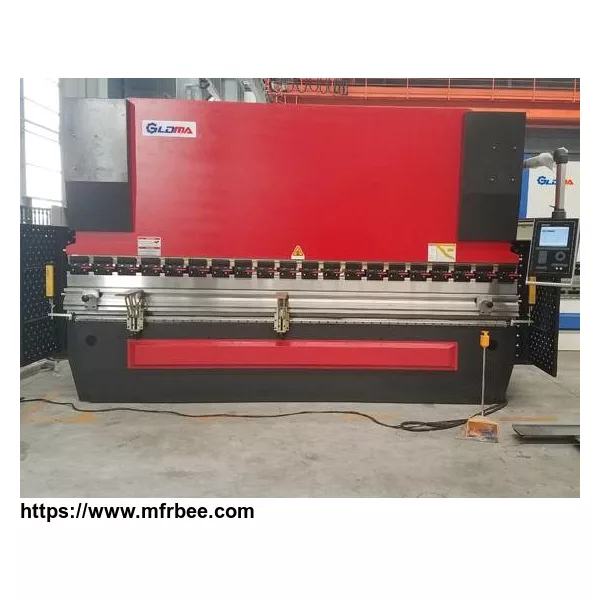

MB8 Automatic Sheet Metal Press Brake Bending Machine With DA56S System

Minimum Order
1
Packaging
N/A
Delivery
15 Days

MB8 CNC Automatic 3+1 Axis Hydraulic Sheet Metal Press Brake Bending Machine With DA56S System Introduction

1. The design meets EU international streamlined design. The fuselage eliminates internal stress by annealing and ensures higher precision and strength. All machines are designed using SOLID WORKS 3D programming to make worktable high rigidity and the whole work More scientific.2. The MB8 series automatic sheet metal electro-hydraulic bending machines use CNC control system (Delem DA56s from Holland) to help you increase your productivity and keep the lowest cost and lower maintenance costs.High quality and repetitive bending is obtained by using synchronized cylinders and valves (Bosch Rexroth from Germany).3. The latest high frequency response hydraulic control technology, high speed, high efficiency and high precision.4. Rigid upper beam runs on 8-point bearings with bending precision of 0.01 mm.5. Use fully closed-loop electro-hydraulic servo control technology, bilateral gratings can feedback slider position signals to CNC system to control the two oil cylinders(Y1,Y2) running on the same frequency and maintaining the workbench's parallel state.As one of China's largest hydraulic press brake manufacturers, GILDE offers high quality automatic sheet metal bending machine
STANDARD EQUIPMENT
1. 4- axis Dutch Delem DA56S CNC controller.2. Full synchronization of 2 cylinders(Y1, Y1) with proportional hydraulic valve system and constant monitoring by CNC system to +/- 0.01mm accuracy.3. Linear guide rail and ball screw accuracy of 0.01mm(HIWIN, TAIWAN).4. Steel mono-block construction.5. fully closed-loop electro-hydraulic servo synchronously controls the system.6. Standard electrics from Schneider, France.7. Standard oil tube connectors from EMB Germany.8. Standard valves and oil pump from Bosch Rexroth Germany.9. Standard main motor from Siemens Germany.10. Hydraulic and electrical overload protection.11. Light guards ensure the safety of operators during operation.

Dutch Delem DA56S Controller:

·10,4” LCD broadband TFT color display ·2D graphical programming·Bend sequence determination·Developed length calculation·Tool/material/product library, 30 upper dies, 60 lower dies·USB keyboard and mouse interface, power-off memory, integrated valve amplifier·Support multiple language Settings·Automatically calculate workbench deflection compensation value·Angle corrections and material stretching database·Delem Modulus compatibility (module scalability and adaptability)·The basic machine control functions are Y1 + Y2 + X + R –axis. A second back gauge axis can also be used as Z1 + Z2+ X1 + X2 or R2 axis.
DETAILED PICTURES
European standard Punch & Dies:The equipped standard Dies, special non-standard mold is available under client's requirement according to real workpiece situation.
Main motor:Siemens GermanyGerman siemens motor ensures more stable and durable service life and lower noise.
Valve:Bosch Rexroth,GermanySealing rings:NOK, JapanIntegrated hydraulic system can effectively prevent the problems caused by hydraulic oil leakage.
Oil Pump: Bosch Rexroth, GermanyGerman Bosch pump can ensure long service life and maintain a lower working temperature and work noise.
Ball screw & linear guide: HIWIN,TaiwanBackgauge adopts horizontal installation shell structure with high stability,singe shell double guiderail, high precision.
Electric: Schneider, Francework with ESTUN servo drives to improve high position accuracy of X,Y axes.
Photo-electric protection:The detection precision reaches the highest accuracy of the international similar products 14mm, guarantee of the operator's safety during operation.
Mechanical quick clamps:Scientific design make changing the upper die safer and more efficiency.

website:http://www.gldma.com/products/mb8-3-1-axis-automatic-sheet-metal-bending-machine.html

contact:0555-2222129

email: info@gldma.com

company:Manshan Gilde CNC Machine Tool Co.,Ltd

address:Ma'anshan City, Anhui Province Dangtu County Bowang New Town area of new materials industrial park
