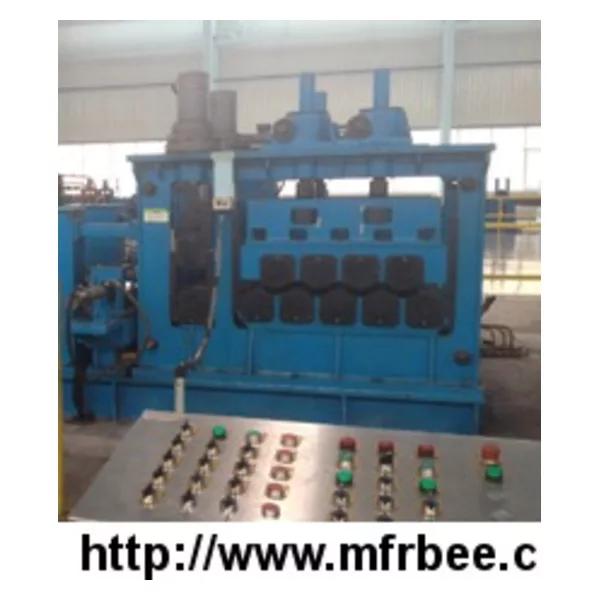

Leveller for ERW Tube mill

China
hebei
Packaging
seaworthy packing
Delivery
1-10 months

Pinch roll:2-foll,driven up and down by hydraulic cylinder

Leveling foll:5(2 top and 3bottom),upper roll driven up and down hydraulic cylinder

; fine adjustment for upper foll: motor driven,automatic adjustment is possible.

Composition:

Driving device ,pinch foll, flattening device,electric control and hydraulic (share the hydraulic system with uncoiler)

Type Width(mm) Thickness(mm) Speed(m/min) structure
JP32 40-120 0.6-1.6 15 5(7)roller
JP50 60-120 0.9-2.0 15 5(7)roller
JP76 100-260 1.2-3.5 15 5(7)roller
JP89 100-300 1.75-5-4.0 8 5(7)roller
JP114 120-400 2.0-6.0 8 5(7)roller
JP165 160-520 2.5-7.0 6 5(7)roller
JP219 240-700 3.5-7.0 6 5(7)roller
JP276 320-900 4.0-10.0 6 5(7)roller
JP325 500-1100 5.0-12.7 6 5(7)roller
JP406 600-1300 5.0-14.0 6 5(7)roller
JP508 700-1650 6.0-16.0 6 5(7)roller
JP603 900-2000 6.0-22.0 6 5(7)roller
