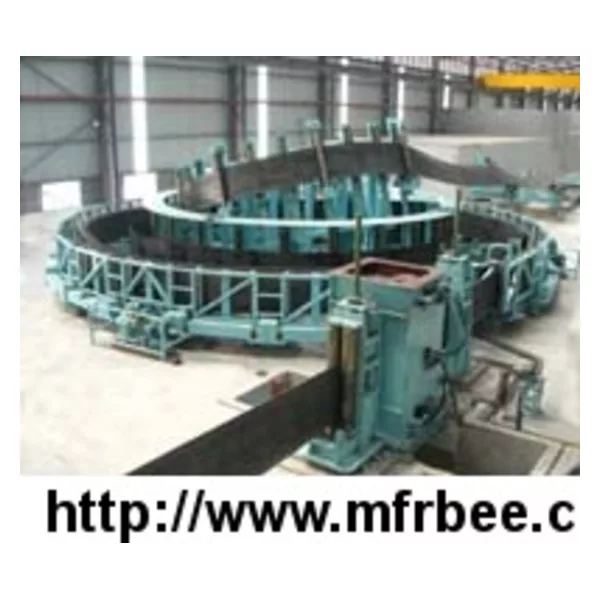

Cage accumulator for ERW Tube mill
Product Quick Detail
- China
- Hebei
- Packaging
- seaworthy packing
- Delivery
- 1-10 months
Specifications
Reasonable structure;
Novel design;
Precise and advanced spiral path;
High capacity;
No scratch to strip;
No loop swelling;
No loop retracting;
Low power consumption
Easy operation
No strip alarming and length measuring
Structure:
Feed in from outside cage and output from the centre;
Fixed loops/variable loops
Plate type/roll rype
Control:
DC drive/AC inverter
Central/individual
Output
Pulled out by forming mill or synchronized driven rolls
It consists of turning device for feeding materials, pinch device, accumulating part, turning device for output materials, transmission device, control system, operation console, etc.
Models for spiral strip accumulator
| Type | Width(mm) | Thickness(mm) | Storage(m) | Out speed(m/min) | Occupied L(m) |
| HT32 | 40-120 | 0.6-1.6 | 400-600 | Mill speed | 7 |
| HT50 | 60-200 | 0.9-2.0 | 400-700 | Mill speed | 10 |
| HT76 | 100-260 | 1.2-3.5 | 400-700 | Mill speed | 14 |
| HT114 | 120-400 | 2.0-6.0 | 400-800 | Mill speed | 18 |
| HT165 | 160-520 | 2.5-7.0 | 400-800 | Mill speed | 20 |
| HT219 | 240-700 | 3.5-7.0 | 400-900 | Mill speed | 18 |
| HT273 | 320-900 | 4.0-10.0 | 400-900 | Mill speed | 38 |
| HT325 | 500-110 | 5.0-12.7 | 500-1000 | Mill speed | 45 |
| HT406 | 600-1300 | 5.0-14.0 | 500-1000 | Mill speed | 45 |
| HT508 | 700-1650 | 6.0-16.0 | 500-1200 | Mill speed | 57 |
| HT630 | 900-2000 | 6.0-22.0 | 500-1200 | Mill speed | 60 |
