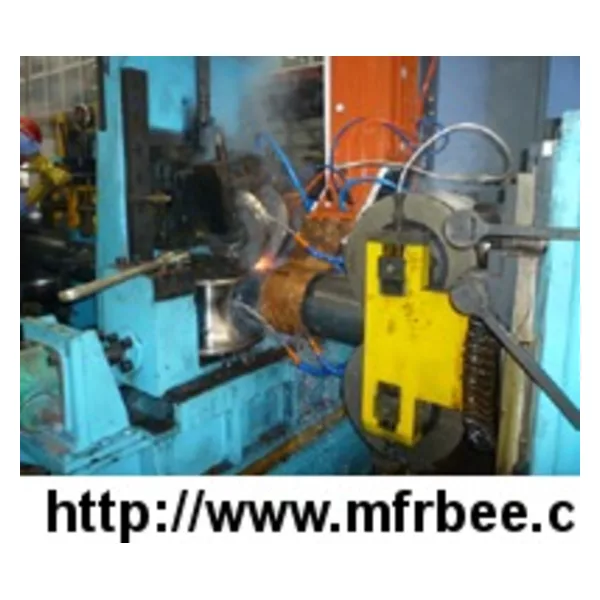

Solid-state high frequency welder is mainly applied to high frequency straight seam tube mill line.The whole set equipment is composed of switchgear rectifying cabinet,inverter output cabinet,circulation soft water cooling system,console and positioning table.
GGP100KW Solid state high frequency welder
1.Tube specification
ODΦ16 - 45mm
Wall thickness 0.6-1.5mm
2.Shape :round pipe,rectangular pipe,special section pipe
3.Welding speed:60-100m/min
4.Welding mode:Induction welding
5.Cooling mode:water-water air-water
Note: 1.The welding speed is based on the condition of max O.D. and max wall thickness.
2.General design:can be designed as per user’s technics.
