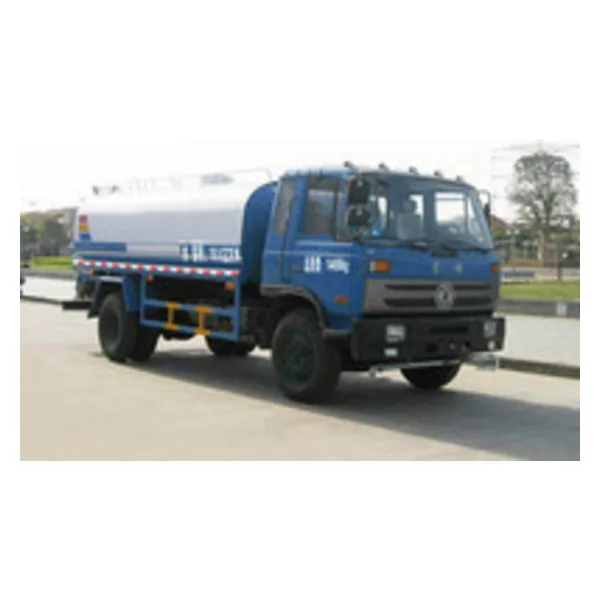

Dongfeng 8-13ton single bridge 15ton water truck

the dongfeng 153 water truck is just adopting the dongfeng original chassis, 4*2 driver, the wheelbase 4500mm, B190 33 EGR engine. 153 luxurious driver cab, 8JS85E transmission, 5ton front bridge, 10ton rear bridge, 10.00-20-16 nylon tyre, 250 double layer truck frame.

2. Upper part:

a. The tanker volume: 15cbm, used Wugang 5mm carbon steel sheet, the tow sides head used 5mm Wugang hot rolled plate. One anti-wave plate inside. The tanker and water pipe are phosphate anti-rust treatment, and nontoxic antirust coating painted on the inner tanker. Without enwind.

b. Pumping-drainage system: choose the well-known brand chengliwei 69/90 water pump, the pipe net manufactured by Tianjin high quality galvanized steel pipe,

c. Front flush: fitted with 360° rotatable straight nozzles controlled by driver cab. The flush width can reach ＞15m.

d. Rear sprinkling, fitted with 2 rear spraying devices, mainly used to clean the road, make the road clear. When spraying as fan-shaped, the spraying width can reach ＞25m.

e. high spraying: working platform equipped with water cannon, the spraying range can reach 28m, the water cannon can adjust to heavy rain, moderate rain, drizzle or mist, etc. mainly used for landscaping greening, also sued as fire truck in urgency.

f. Side sprinkling: install 2 side spraying nozzles behind the truck, mainly used to spray, water, dedusting of the greening, etc.

g. self-sucking: install with 2 suction sleeves, one absorber,
