Ideal for large scale installations.
High power footprint reduces installation time and BOS costs
One of the industry’s most trusted modules
Field proven performance
Strong, reliable supplier.
Certified to withstand challenging environmental conditions
2400 Pa wind load
5400 Pa snow load
25mm hail stone at 82 km/hr
Enhanced module durability with 3.2mm thick tempered glass.

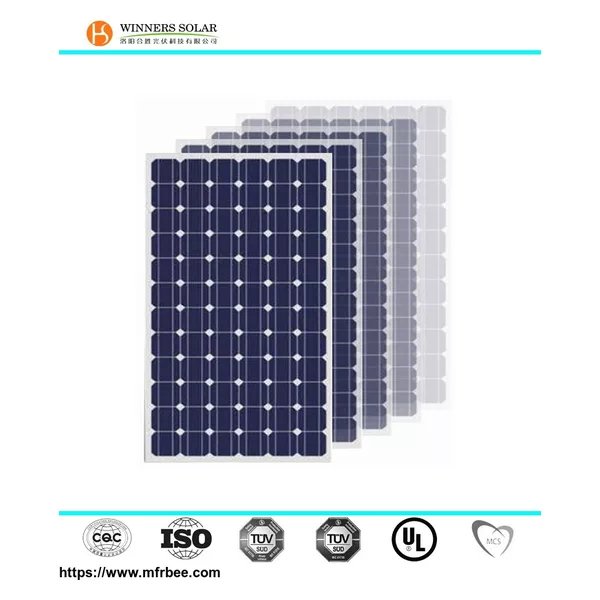

SWM260P156 SPECIFICATION:
ELECTRICAL DATA @ STC
Peak Power Watts Pmax(WP): 260
Power Output Tolerance Pmax(%):+3
Maximum Power Voltage Vmp(V):31.1
Maximum Power Current IMPP(A):8.37
Open Circuit Voltage Voc(V):38.1
Short Circuit Current Isc(A):8.98
Module Efficiency ηm(%): 15.9
Values at Standard Test Conditions STC(Air Mass AM1.5,Irradiance 1000W/㎡。Cell Temperature 25℃)
ELECTRICAL DATA @NOCT
Maximum Power Pmax(Wp): 193
Maximum Power Voltage Voc(V):28.7
Maximum Power Current Impp(A):6.71
Open Circuit Voltage Voc(V):35.2
Short Circuit Current Isc(A):7.31
NOCT: Irradiance at800W/㎡,Ambient Temperature 20℃,Wind Speed 1m/s
MECHNICAL DATA
Solar Cells: Mono-crystalline 156*156mm(6 in)
Cell Orientation: 60 cells(6*10)
Module Dimensions: 1640*992*35mm(62.2*41.89*1.57 in)
Weight: 18.5kg(40.79 Ib)
Glass: High transparency solar glass 4.0mm(0.16 in)
Frame: Anodized aluminum alloy
J-Box: IP 65 rated
Cables: Photovoltaic technology cable 4.0mm²(0.0062 in²)
Connector: Original MC4 PLUS
TEMPERATURE RATINGS
Nominal Operating Cell Temperature(NOCT): 45℃(±2℃)
Temperature Coefficient of Pmax: -0.43%/℃
Temperature Coefficient of Voc: -0.32%/℃
Temperature Coefficient of Isc: 0.04%/℃
MAXIMUM RATINGS
Operational Temperature: -40℃~+85℃ 10 Year Product
Maximum System Voltage: 1500V DC(IEC)/ Workmanship Warranty
1000V DC(UL) 25 Year Linear Power
Max Series Fuse Rating: 15A Warranty
PACKAGING CONFIGURATION 20’GP 40’GP 40’HQ
Quantity/Pallet 30 30 32
Pallet Quantity 12 28 28
Total Pcs 360 840 896
