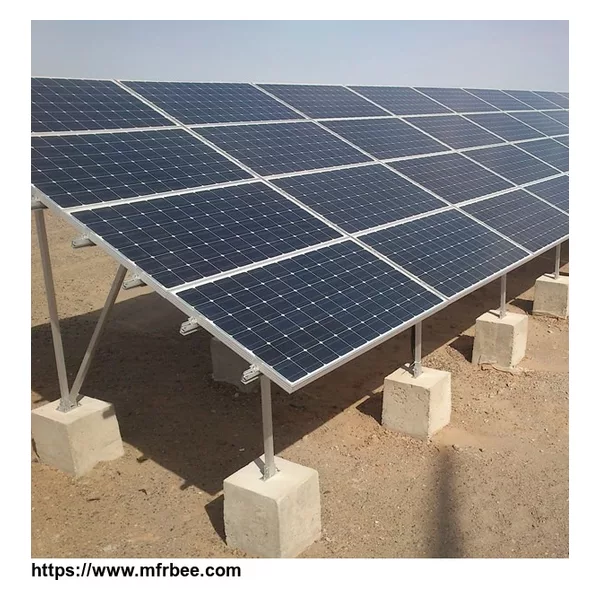

315 mono solar panel

SWM315M156 SPECIFICATION:

ELECTRICAL DATA @ STC

Peak Power Watts Pmax(WP): 315

Power Output Tolerance Pmax(%):+3

Maximum Power Voltage Vmp(V):37.6

Maximum Power Current IMPP(A):8.38

Open Circuit Voltage Voc(V):46.1

Short Circuit Current Isc(A)；8.87

Module Efficiencyηm(%)：16.2

Values at Standard Test Conditions STC(Air Mass AM1.5,Irradiance 1000W/㎡。Cell Temperature 25℃)

ELECTRICAL DATA @NOCT

Maximum Power Pmax(Wp): 234

Maximum Power Voltage Voc(V):35.8

Maximum Power Current Impp(A):6.54

Open Circuit Voltage Voc(V):43.9

Short Circuit Current Isc(A):7.10

NOCT: Irradiance at 800W/㎡，Ambient Temperature 20℃，Wind Speed 1m/s

MECHNICAL DATA

Solar Cells:  Mono-crystalline 156*156mm(6 in)

Cell Orientation:  72 cells(6*12)

Module         1956*992*40mm(62.2*41.89*1.57 in)

Dimensions

Weight:  22kg(48.5 Ib)

Glass:  High transparency solar glass 3.2mm(0.13 in)

Frame:  Anodized aluminium alloy

J-Box:  IP 65 rated

Cables:  Photovoltaic technology cable 4.0mm²(0.0062 in²)

Connector:  Original MC4 PLUS

TEMPERATURE RATINGS

Nominal Operating Cell Temperature(NOCT):  45℃（±2℃）

Temperature Coefficient of Pmax:  -0.43%/℃

Temperature Coefficient of Voc:   -0.32%/℃

Temperature Coefficient of Isc:    0.047%/℃

MAXIMUM RATINGS

Operational Temperature:    -40℃~+85℃            10 Year Product

Maximum System Voltage:  1500V DC(IEC)/           Workmanship Warranty

                        1000V DC(UL)            25 Year Linear Power

Max Series Fuse Rating:     15A                     Warranty
