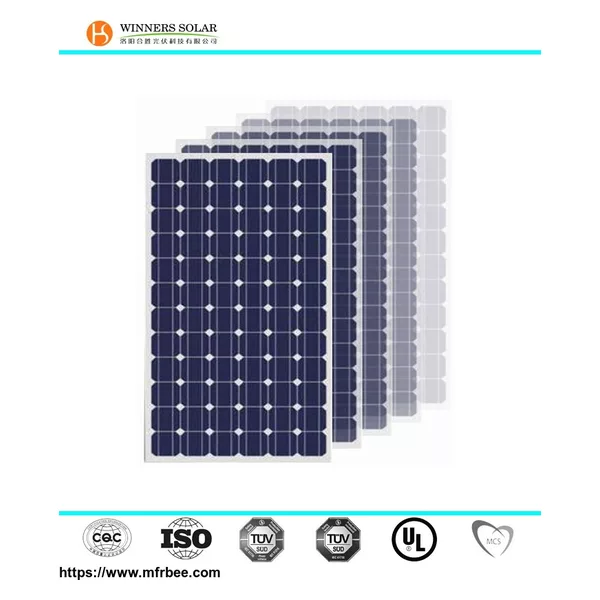

265 mono solar panel

The Advantage of SWM265M156 Solar panels

#comment>s         #comment>Sleek Appearance

Available with black frame

#comment>s         #comment>Stringent Quality Control

#comment>s         #comment>All modules undergo electrical Performance test,

1000V insulation test, and electroluminescence test

#comment>s         #comment>Reliable Performance

Anti-reflective glass coating and advanced cell surface texturing to

better capture direct and indirect light

“Lower temperature coefficient for higher output in hot conditions”.

SWM265M156 Specification

ELECTRICAL DATA  @ STC

Peak Power Watts Pmax(WP):265

Power Output Tolerance Pmax(%):+3

Maximum Power Voltage Vmp(V):31.2

Maximum Power Current IMPP(A):8.50

Open Circuit Voltage Voc(V):38.2

Short Circuit Current Isc(A)；9.19

Module Efficiencyηm(%)：16.3

Values at Standard Test Conditions STC(Air Mass AM1.5,Irradiance 1000W/㎡。Cell Temperature 25℃)

ELECTRICAL DATA @NOCT

Maximum Power Pmax(Wp): 197

Maximum Power Voltage Voc(V):29.0

Maximum Power Current Impp(A):6.78

Open Circuit Voltage Voc(V):35.4

Short Circuit Current Isc(A):7.39

NOCT: Irradiance at 800W/㎡，Ambient Temperature 20℃，Wind Speed 1m/s

MECHNICAL DATA

Solar Cells:  Mono-crystalline 156*156mm(6 in)

Cell Orientation:  60 cells(6*10)

Module         1640*992*35mm(64057*39.06*1.38 in)

Dimensions

Weight:  18.5kg(40.79 Ib)

Glass:  High transparency solar glass 3.2mm(0.13 in)

Frame:  Anodized aluminum alloy

J-Box:  IP 65 rated

Cables:  Photovoltaic technology cable 4.0mm²(0.0062 in²)

Connector:  Original MC4 PLUS

TEMPERATURE RATINGS

Nominal Operating Cell Temperature(NOCT):  45℃（±2℃）

Temperature Coefficient of Pmax:  -0.43%/℃

Temperature Coefficient of Voc:   -0.32%/℃

Temperature Coefficient of Isc:    0.047%/℃

MAXIMUM RATINGS

Operational Temperature:  -40℃~+85℃            10 Year Product

Maximum System Voltage:  1500V DC(IEC)/           Workmanship Warranty

                       1000V DC(UL)             25 Year Linear Power

Max Series Fuse Rating:    15A                      Warranty

PACKAGING CONFIGURATION   20’GP      40’GP     40’HQ

Quantity/Pallet               30         30        30

Pallet Quantity               12         28         28

Total Pcs                    360        840        896
