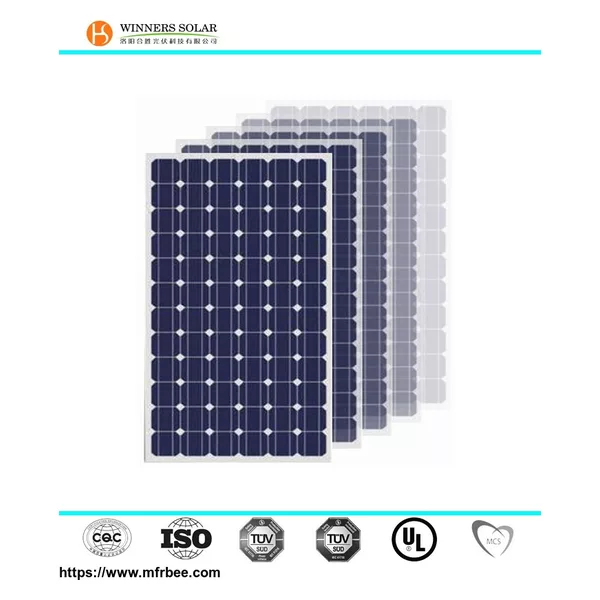

260w poly solar panel

The Advantage of SWM260P156 Solar panels

Ideal for large scale installations.

High power footprint reduces installation time and BOS costs

One of the industry’s most trusted modules

   Field proven performance

Strong, reliable supplier.

Certified to withstand  challenging environmental conditions

   2400 Pa wind load

   5400 Pa snow load

   25mm hail stone at 82 km/hr

Enhanced module durability with 3.2mm thick tempered glass.

SWM260P156 SPECIFICATION:

ELECTRICAL DATA @ STC

Peak Power Watts Pmax(WP):  260

Power Output Tolerance Pmax(%):+3

Maximum Power Voltage Vmp(V):31.1

Maximum Power Current IMPP(A):8.37

Open Circuit Voltage Voc(V):38.1

Short Circuit Current Isc(A):

Module Efficiencyηm(%):  15.9

Values at Standard Test Conditions STC(Air Mass AM1.5,Irradiance 1000W/㎡。Cell Temperature 25℃)

ELECTRICAL DATA @NOCT

Maximum Power Pmax(Wp): 193

Maximum Power Voltage Voc(V):28.7

Maximum Power Current Impp(A):6.71

Open Circuit Voltage Voc(V):35.2

Short Circuit Current Isc(A):7.31

NOCT: Irradiance at 800W/㎡，Ambient Temperature 20℃，Wind Speed 1m/s

MECHNICAL DATA

Solar Cells:  Mono-crystalline 156*156mm(6 in)

Cell Orientation:  60 cells(6*10)

Module Dimensions:  1640*992*35mm(62.2*41.89*1.57 in)

Weight:  18.5kg(40.79 Ib)

Glass:  High transparency solar glass 4.0mm(0.16 in)

Frame:  Anodized aluminum alloy

J-Box:  IP 65 rated

Cables:  Photovoltaic technology cable 4.0mm²(0.0062 in²)

Connector:  Original MC4 PLUS

TEMPERATURE RATINGS

Nominal Operating Cell Temperature(NOCT):  45℃（±2℃）

Temperature Coefficient of Pmax:  -0.43%/℃

Temperature Coefficient of Voc:   -0.32%/℃

Temperature Coefficient of Isc:    0.04%/℃

MAXIMUM RATINGS

Operational Temperature:  -40℃~+85℃            10 Year Product

Maximum System Voltage: 1500V DC(IEC)/           Workmanship Warranty

                      1000V DC(UL)            25 Year Linear Power

Max Series Fuse Rating:   15A                     Warranty
