Model Number: UIYDDI7046A415T435 Frequency Range: 415~435MHz Insertion Loss: 0.6dB Isolation:45dB VSWR:1.2 Forward Power: 300W Reverse Power: 100W Connector Type: TAB Temperature: -30~+70°C ...
Model Number: UIYDMC108A Frequency Range: 8.0~12.0GHz Bandwidth:20% Insertion Loss: 0.5dB Isolation:30dB VSWR:1.25 Forward Power:10W Reverse Power:5W Connector Type: Microstrip Temperature: -55~+85°C Dimension:10*8*2.5mm ...
Model Number: UIYDDI2420A57T63 Frequency Range: 5.7~6.3GHz Bandwidth:20% Insertion loss:0.6dB Isolation:45dB VSWR:1.25 Forward Power: 30W Reverse Power: 5W Temperature: -40~+85°C Dimension:24*20*8mm ...

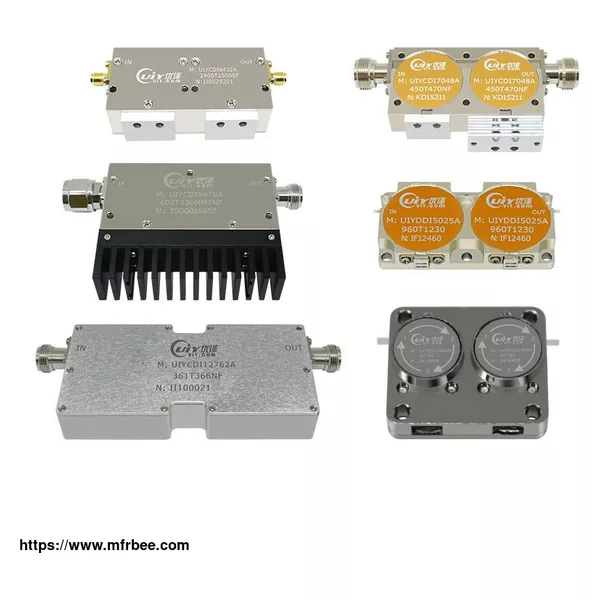

UIY RF Drop in Dual Junction Circulator Custom Design available: •Operating Frequencyfrom10MHzto40GHz. •Connector Type:TAB •Powerup to3000W. ...
Model Number: UIYCDC3928A54T59SF Frequency Range:5.4~5.9GHz Bandwidth:20% Insertion Loss:0.8dB Isolation:45dB VSWR:1.2 Forward Power:60W Reverse Power:60W Connector Type: SMA-F Temperature: -40~+85°C Dimension:39*28*15mm Our Main Products: RF Isolators RF Circulators RF ...
UIY 88-108MHz FM Dual Junction Coaxial Circulator Product Name: (Radio Frequency) RF Component - Dual Junction Coaxial Circulator Place of Origin: Shenzhen of City, China Model: UIYCDC12060A Frequency Range: 45-270MHz Bandwidth: 40% Insertion Loss Max: 0.7 dB Isolation: 50 dB ...
UIY 136-174MHz VHF Dual Junction Isolator Model: UIYCDI12075A Place of Origin:Shenzhen City, China Product Name: (Radio Frequency) RF Component -Dual Junction Coaxial Isolator Frequency Range:45-270MHz Band Width Max.:0.4 Insertion Loss Max (dB):0.7 Isolation Min ...
Product Description Low frequency from 10MHz to 1875MHz, FM, VHF, UHF, etc Model No. Freq.Range (MHz) BW Max. IL. (dB) Isolation (dB) VSWR Forward Power(W) Reverse Power(W) Connector Type Temp. (°C) Dimension LxWxH(mm) UIYCI8080A 10~55 20% 1.2 20 1.25 50 50 N, SMA +10~+60 ...
Part Number Nominal Input Voltage Input voltage range Output voltage Output current(Max) VDC VDC VDC mA TPI0505S 5 4.75-5.25 ±5 ±100 TPI0509S 5 4.75-5.25 ±9 ±56 TPI0512S 5 4.75-5.25 ±12 ±42 TPI0515S 5 4.75-5.25 ±15 ±33 TPI1205S 12 11.4-12.6 ±5 ±100 TPI1209S 12 ...
