Galvanised Wire
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications

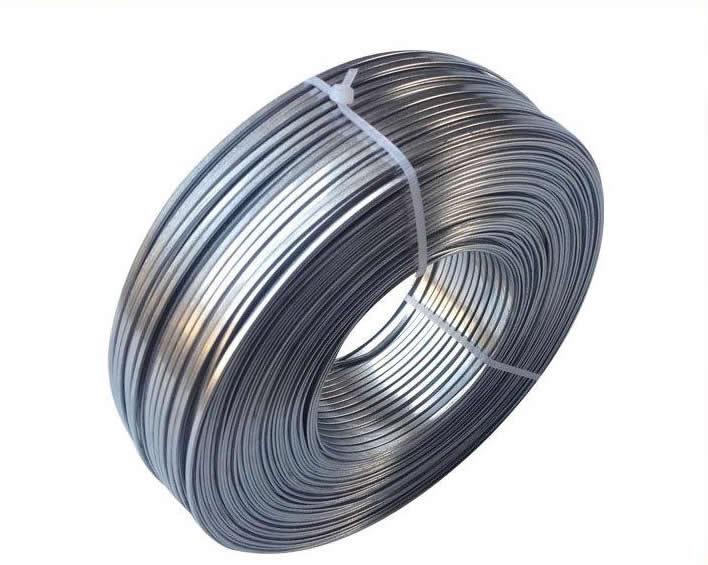

GALVANISED STEEL FLAT WIRE
We supply various flat wire for industrial processing of knit mesh
0.22 mm Galvanized Iron Flat Wire for Knitting Mesh Tapes
0.22mm galvanized wire is used for the manufacture of knitted mesh scourers. The wire is smooth, white and shiny. In 15 kgs spools.
Flat Stitching Wire
Gauges:
SWG #18: width 1.83+/-0.02mm,thickness 0.71+/-0.02mm
SWG #17: width 1.95+/-0.02mm,thickness 0.75+/-0.02mm
SWG #16: width 2.15+/-0.02mm,thickness 0.80+/-0.02mm
Stitching wire
soft flat galvanized for different jobs,
size: 0.89 x 0.63mm,
tensile strength: 1235/1390 n/mm2,
vickers hardness: 318 to 420 h. v,
stiffness (stress/strain=young modulus): 190,000 gpa for steel.
elongation: 1.3%,
malleability: 90 degree bend test 6 to 8 bend to failure.
chemical analysis:
carbon: 0.35 to 0.40,
manganese: 0.50 to 0.70,
silicon: 0.18 to 0.28,
sulphur: 0.040,
phosphate: 0.040,
weight: 3.5 kgs with spool (bobbin)
Notes:
the stitching wire must be winded on the plastic spool or bobbin.
pictures of the plastic spool may be send on request (if needed).
the stitching wire must be as per approved specification and samples.
Flat Staple Wire (Galvanized).
Size: 0.8 x 0.6 mm
Packing: 2 kg Spool, Each Spool PP warping.; Cartoon box. International Seaworthy packing.
Stapling Wire (Flat, Galvanized/Nickel Coated)
Size 0.8 X 0.6 mm, Inner diameter, outer diameter and bobbin will be 20 mm, 70 mm and 60 mm respectively.
Galvanized coil wire for stitching.
Hot Dipped Galvanised Steel Wire for Stitching and Stapling
8mm Diameter carton binding galvanized flat wire for Garden Binding Paddle Wire
High Tensile Galvanized Steel Oval Wire for Binding and Packaging
Basic material for oval wire: Low carbon steel wire rod, galvanized steel wire and high carbon steel wire
Main Sizes: 2.4*3.0mm 2.2*2.7mm 2.35*2.35m. Other sizes custom made.
Processing: Oval wire is made from high quality high tensile wire by redrawing equipment, mainly used in South America and other countries for farms and fencing.
Steel Material: 45#,55# and 65# high carbon steel
Tensile Strength: 600 KGF-1400KGF
Common Sizes:
| Wire Gauge Size | SWG(mm) | BWG(mm) | J. de p |
| 12 | 2.64 | 2.77 | 1.8 |
| 13 | 2.34 | 2.41 | 2.0 |
| 14 | 2.03 | 2.11 | 2.2 |
| 15 | 1.83 | 1.83 | 2.4 |
| 16 | 1.63 | 1.65 | 2.7 |
| 17 | 1.42 | 1.47 | 3.0 |
| 18 | 1.22 | 1.25 | 3.4 |
| 19 | 1.02 | 1.07 | 3.9 |
| 20 | 0.91 | 0.89 | 4.4 |
| 21 | 0.81 | 0.813 | 4.9 |
| 22 | 0.710 | 0.711 | 5.4 |
| 23 | 0.6096 | 0.6347 | 5.9 |
- Country: China (Mainland)
- Business Type: Dezhou Hengda Perforated Metal Factory
- Market:Africa,Americas,Asia,Emerging Markets,Europe,European Union,G20,Middle East,Oceania
- Founded Year:2004
- Address:18 Xinyue Street,shijiazhuang,hebei, China
- Contact:Shuiliu Zhou
