Razor Wire

Frishine exports and manufactures high-quality razor wire products used to enhance the security level of temporary fencings. Our razor wire options include straight line razor ribbons, concertina razor wire coils, welded razor mesh, each designed to meet specific security fencing needs and applications.

Razor Wire Blade Profiles:

BTO-10 Razor Wire:
BTO-10 Razor Wire features a blade length of 10mm, 13 mm in width, thickness 0.5mm, a core wire diameter 2.5mm, with a blade spacing of 26mm. This razor wire is typically supplied in coils with a standard length of 10m, featuring 33 loops per coil for extended length.

BTO-18 Razor Barbed Wire:
BTO-18 Razor Barbed Wire features a blade length of 18mm, 15mm wide, blade spaced at 35mm, blade thickness of 0.5mm and a core wire diameter of 2.5mm, providing a solid barrier. Coils are generally available in 10m standard lengths, around 33 loops.

BTO-22 Razor Wire Concertina:
The BTO-22 Concertina Razor Wire features a blade length of 22mm and 15mm in width, with a blade space of 34mm, blade thickness 0.5mm and a core wire diameter of 2.5mm. This razor wire is commonly formed in concertina coils with an outside diameter of 600mm and a standard coil length of 10m, in 55 loops for enhanced security perimeters.

BTO-22 Welded Security Razor Mesh:
BTO-22 Welded Security Razor Mesh is flat sheet razor wire welded into diamond mesh. Blade thickness of 0.5mm and a core wire diameter of 2.5mm, blade 22mm long and 15mm wide. The razor mesh is typically produced in sheets or rolls.

BTO-28 Blade Razor Wire:
BTO-28 Razor Wire features a blade length of 28mm and 15mm in width, a blade spacing of 45mm. With a blade thickness of 0.5mm, BTO-28 Blade Razor Wire has a standard core wire diameter of 2.5mm. This razor wire is available in coils of 10m standard length and 53 loops.

BTO-30 Razor Blade Wire:
BTO-30 Razor Blade Wire features a blade length of 30mm and 18mm in width, with a blade spacing of 46mm, blade thickness of 0.5mm and a core wire diameter of 2.5mm. Standard coil lengths 10m, 54 loops, suitable for medium level security fencing.

CBT-60 Razor Wire Concertina:
CBT-60 Razor Wire Concertina features a blade length of 60mm, 32mm in width, blade spaced at 96mm, thickness of 0.6mm and a core wire diameter of 2.5mm. This concertina wire typically has an diameter of 730mm and standard coil lengths 10m, with about 55 loops per coil, designed for high security fencing.

CBT-65 Concertina Razor Wire Coils:
CBT-65 Concertina Razor Wire Coils feature a blade length of 65mm, 21mm in width, with a 100mm space between blades, thickness 0.6mm and core wire diameter 2.5mm. These concertina coils usually have an outside diameter of 800mm, supplied in 10m lengths, in 56 loops, ideal for high-security fencing.

SS-316 Concertina Razor Wire with Galvanized Core

Specifications:

• Diameter: 600 mm (±50mm)
• Blades: Made from SS-316 stainless steel, with excellent corrosion resistance and durability.
• Core Wire: Galvanized, with a diameter of 2.50mm (± 0.2mm), offering additional protection against rust and environmental elements.
• Loops: 24 (±1), conforming to ASTM F1910 standards.

This Concertina Razor Wire is designed for high-security applications. The use of SS-316 blades coupled with a high tensile galvanized steel core wire makes this razor wire an ideal choice for coastal areas and military uses.

Concertina Razor Tape Fencing Systems

960 mm Concertina Barbed Tape for Security Fencing Tops

• Diameter: Minimum 960 mm, concertina razor coils stretched to a maximum of 10 meters.
• Core Wire: 2.5 mm minimum diameter, high-tensile GI wire, heavily galvanized.
• Tape Thickness: 0.5 mm, heavily galvanized.
• Tape Width: 15 mm.
• Barb Type: MBBT, with a length of 22 mm and spacing of 13 mm.
• Clips: 5 per coil.
• Space Between Coils: 180 mm.
• Turns and Loops: 112 turns, 56 loops.
• Galvanization: All metals galvanized (275 g/m²).

450 mm Diameter Concertina Razor Coil (10 Meters Stretch)

• Diameter: Minimum 450 mm, concertina razor coils stretched to a maximum of 10 meters.
• Core Wire: 2.5 mm minimum diameter, high-tensile GI wire, heavily galvanized.
• Tape Thickness: 0.5 mm, heavily galvanized.
• Tape Width: 15 mm.
• Barb Length: 22 mm.
• Barb Spacing: 13 mm.
• Clips: 5 per coil.
• Space Between Coils: 90 mm.
• Turns and Loops: 224 turns, 112 loops.
• Galvanization: All metals galvanized (275 g/m²).

450 mm Diameter Concertina Coil Fencing System (12 Meters Stretch)

• Diameter: Minimum 450 mm, concertina razor coils stretched to a maximum of 12 meters.
• Core Wire: 2.5 mm minimum diameter, high-tensile GI wire, heavily galvanized.
• Tape Thickness: 0.5 mm, heavily galvanized.
• Tape Width: 15 mm.
• Barb Length: 22 mm.
• Barb Spacing: 13 mm.
• Clips: 5 per coil.
• Space Between Coils: 200 mm.
• Turns and Loops: 112 turns, 56 loops.
• Galvanization: All metals galvanized (275 g/m²).

Each of these systems can be designed to meet various temporary security and permanent security fencing needs in perimeter protection.

Double coil razor wire security fencing – This fence includes vertical green posts supported green coated wire mesh barrier. The anti-climb mesh panel is topped with concertina coil of razor wire with sharp barbs, providing an additional layer of protection.

Single coil razor wire topped temporary security fencing- Dark green coated steel posts and bent wave welded wire mesh designed to prevent climbing, topped with BTO-22 concertina razor wire spiral for enhanced safety.

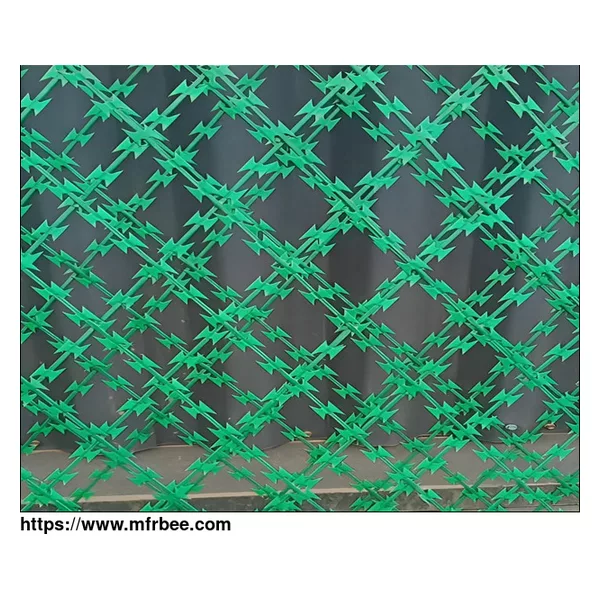

Flat welded razor wire mesh security fencing – Welded razor grid used as reinforcement for temporary guardrails. Three features: 1, A physical barrier due to the formidable appearance and the actual sharp barbs to deter and prevent intrusion and climbing. 2, The design of this flattened razor wire allows easy mounting atop fences or walls while maintaining a lower profile than traditional spiral razor wire without compromising on safety. 3, Welded razor ripper net can be painted into green and other colors, match the color of the temporary fencing.
