COMPRESSED KNITTED STAINLESS STEEL WIRE MESH

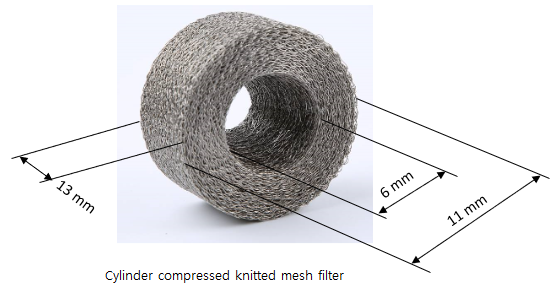

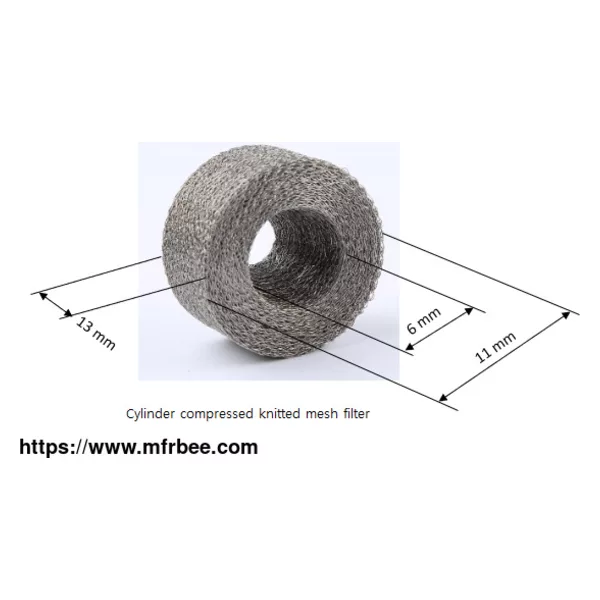

Compressed knitted wire mesh is used mainly for cylinder filters and strainers.

Compressed knit mesh features:
High strength and overall rigidity; Good air permeability;
Excellent filtering accuracy;
Good filter resistance, mechanical strength, abrasion resistance, heat resistance and cold resistance;
Easy to clean, simple assembly, long replacement cycle;
Special sizes can be customized.

Major Product Types

Stainless Steel Compressed Knitted Mesh

Material stainless steel wire 304
Style: Compressed knitted
Wire diameter 0.03-0.5mm
Diameter size 16.0mm (+/-1.0mm)
Thickness 10mm (+/-3.0mm)

kitted wire mesh filter 10 micro
Stainless Steel Compressed Knitted Wire Mesh filter 10µm
Size: diam. ¼"- H ¼"
Material: 316 L SS

We can make knitted wire mesh compressed into a specific shape.
Knitted wire mesh
Material =Stainless AISI 304 / DIN 1.4301
One wire 0,28mm diameter à It could be thinner
120 +/- 5 mm width (mesh size # 7*7mm / corrugated fish bones W#16mm x H#10 mm)

Compressed Knitted Wire Mesh Filter

0.23 mm wire diameter
14 mm diameter
5 mm thick
Weight 2.00 ± 0.5 gm
Material: Stainless steel

Compressed knitted mesh filter for filtering vaporized oil / other cooking products out of the air in a commercial kitchen.
Rectangular prism shape 100x125x15mm approx. size (depending on the density of the filter perhaps thinner 10mm)
Corrosion resistance (dishwasher safe 304 stainless or similar)

Knitted Mesh Strainer

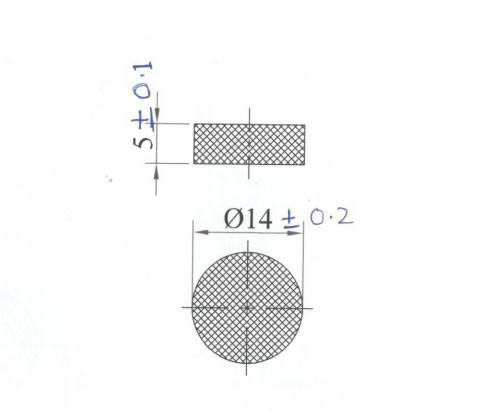

Drawing reference of the compressed filter mesh fabric:

Material: 1.4301 / X5Cr Ni 18-10
Tolerance as per ISO 2768 MK
Pressed Wire Fabric
Wire: Ø 0.23 mm
Mass: 2 ± 0.5g

Compressed SS Knitted Mesh

Compressed Knitted Mesh SS
Size:
OD 135mm
ID 63mm
Thick 50mm

Compressed Knitted Wire Mesh used as Exhaust Silencers

Material: Stainless steel wire 304
Style: Compressed knitted
Wire diameter 0.03-0.5mm
Diameter size 0.5-7cm
Thickness 2-25mm

Knitted Mesh Exhaust Decoupling Rings

Knitted mesh rings used in decoupling joints and load support assemblies to absorb vibration, reduce noise and accommodate thermal expansion.
Forms: Knit mesh cylinder
Knitted mesh rings can withstand the harsh exhaust gas environment endured by exhaust components.
Material: Stainless steel knit mesh

Inconel – High temperature applications, up to 2300 F
WIRE DIAMETER
0.002″ – 0.030″ (MOST COMMON SIZE: .008″, .095″ & .011″
ROLL WIDTHS
1″ – 43" (MOST COMMON: 4″ 6″, 12″, 18″, 24″, 30″, OR 42″)
WEIGHT / DENSITY
0.011" ,0.095", 0.008"
STAINLESS STEEL
13 LBS/SQFT,18 LBS/SQFT,24 LBS/SQFT
HOLE DENSITY
60 HOLES/INCH
CRIMPING / CORRUGATION
UP TO 30"
