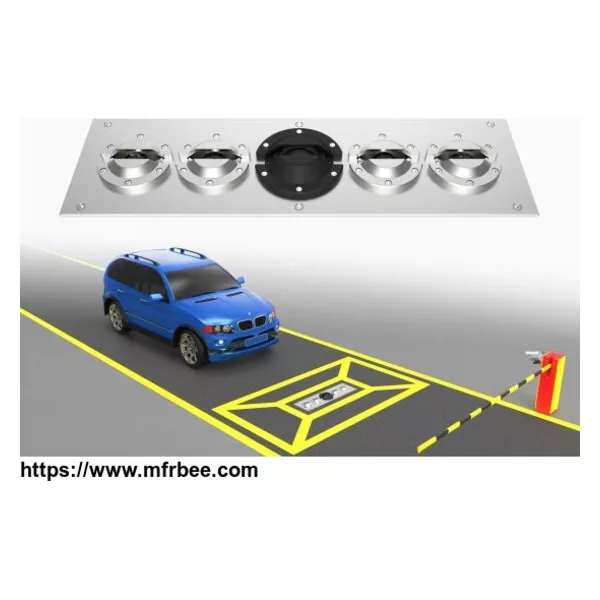

Fixed Under Vehicle Surveillance System TE-CBS-F01

Fixed Under Vehicle Surveillance System



Model: TE-CBS-F01

Brand: Techik



Application: Under Vehicle Surveillance System carries on security inspection from the bottom of the vehicle. It is an ideal security inspection system to inspect dangerous stuffs or smugglers hidden under the vehicle at the airport, customs, public park, large-scale activity, jail, hotel etc.



Features:

Fast Save and Load Time

Excellent Image Clarity

Large-scale Scanning

High Resolution

Customized Language Interface

Image Auto Save And Auto Delete Function



Technical Parameters:



System Software

Imaging Principle     Black and white line array CCD scanning

Chassis Load/Save Time  Less than 1S

Chassis Image Display     Large and horizontal image display

Image Storage Format    BMP or JPEG

System Language    Can be customized

Display Resolution   Various resolution available

Data Transmission Interface   NetworkRJ45

Chassis Image Resolution        ＞ 10000×5340

Retrieval Function   Retrieve images according the date,time,license plate number etc.

Surrounding Parameters Display     Temperature, humid and air pressure display on the internal screen

Image Enlargement         ＞ 5 levels,E-zoom available

Scanning Device

Scanning Method     Linear scanning, induction coil trigger

Detection Speed      1-50KM/h, suggestion ≤30KM/h

Field Of View    ≥170°

Lengthways Resolution   2048 pixels CCD

Illuminating Package        4 sealed LED area light; Lifespan:50000h

Operation Voltage   DC 24V

Power Supply   AC110~240V/50~60HZ

Appearance     Compact design

Load-weigh      50T

Size and Weight        1200*350*210mm/ 180Kg

Operation Temperature  -20℃~+60℃



IPC

Display     22-inch LCD screen

CPU Intel core4

RAM         DDR3, Capacity＞4GB

Hard Disk          500GB

GPU DDR3,192BIT independent graphics card

Appearance     Stainless steel composite material

Power Supply   AC220V/50~60HZ/3A

Operation Temperature  -20℃~+60℃
