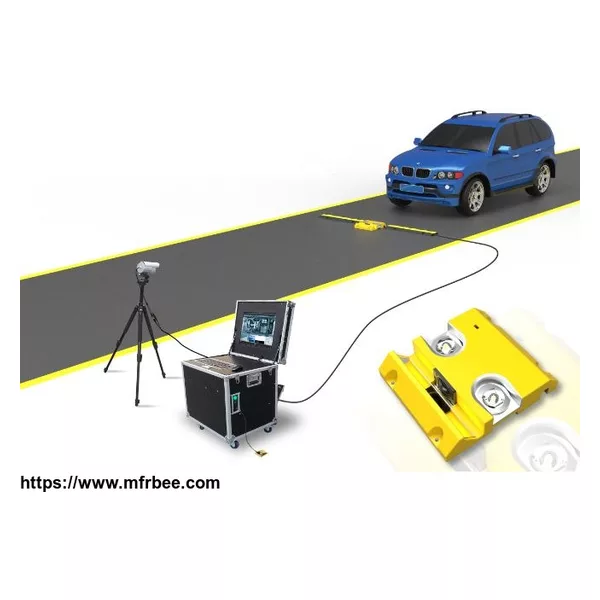

Portable Under Vehicle Surveillance System TE-CBS-M01

Portable Under Vehicle Surveillance System



Model: TE-CBS-M01

Brand: Techik



Application: Under Vehicle Surveillance System carries on security inspection from the bottom of the vehicle. It is an ideal security inspection system to inspect dangerous stuffs or smugglers hidden under the vehicle at the airport, customs, public park, large-scale activity, jail, hotel etc.



Features:

Fast Save and Load Time

Excellent Image Clarity

Large-scale Scanning

High Resolution

Customized Language Interface

Image Auto Save and Auto Delete Function

Portable



Technical Parameters:



System Software

Imaging principle     Black and white line array CCD scanning

Scanning Resolution         CCD 2048

Chassis Load/Save Time  Less than 1S

Chassis Image Display     Large and horizontal image display

Image Storage Format    BMP or JPEG

System Language    Can be customized





Display Resolution   Various resolution available

Data Transmission Interface   NetworkRJ45

Chassis Image Resolution        ＞ 10000×5340

Retrieval Function   Retrieve images according the date,time,license plate number etc.

Image Enlargement         16 levels, E-zoom available

Scanning Device

Scanning Method     Automatic,  Non-external trigger condition scanning

Detection Speed      1-60KM/h, Suggestion ≤30KM/h

Field Of View    ≥170°

Supplementary Lighting  160W

Illuminating Package        2 sealed LED area light; Lifespan:50000h

Communication Port        RJ 45

Power Supply   AC110~240V/50~60HZ

Waterproof Grade   IP68, all- day run available

Load-weigh      ＞15T

Size and Weight        450*400*88mm/ 28Kg

Backup Power Available (Option)

Operation Temperature  -10℃~+60℃



IPC

Display     22-inch LCD screen

CPU Intel core4

RAM         DDR3, Capacity＞2GB

Hard Disk          500GB

GPU DDR3,192BIT independent graphics card

Appearance     Aluminum alloy composite material

Power Supply   AC220V/50~60HZ/3A

Cable Length   10m
