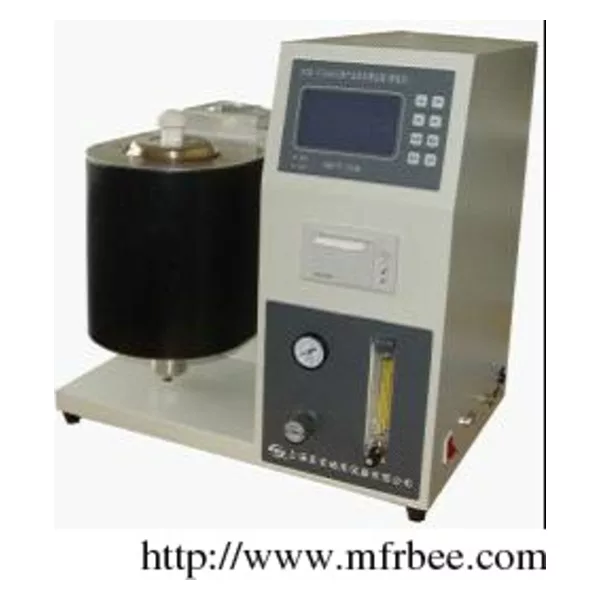

GD-17144 Micro-method Carbon Residue Tester

I.Brief Introduction

• This Carbon residue tester is designed and made as per the national standard of People’s Republic of China GB/T17144 Test Method for Carbon Residue of Petroleum Products by Micro-method.
• Also it suitable for  ASTM D4530 STANDARD TEST METHOD FOR DETERMINATION OF CARBON RESIDUE (MICRO METHOD) .
• It is suitable to determine the carbon residue of petroleum products.
• The range of carbon residue determined with the instrument:0.10%(m/m)~30.0%(m/m).
• To the products which carbon residue exceed 0.10%(m/m),the test result is equivalent with the carbon residue tester(Conradson Method)
•  The instrument is also suitable to determine the petroleum products composed of distillate oil which carbon residue is lower than 0.10%(m/m).But it should prepare 10%(V/V)distillation residue by method of ASTM D86 firstly and then doing determination with the instrument.

II.Main technical specifications and parameters
  1.Power supply:  AC220V ±10%,50Hz
  2. Power consumption:  ≤1600W
  3.Temperature of coking box: 500°C
  4.Temperature controlling accuracy:±2°C
  5. Heating power:   1500W
  6. Ambient temperature:  5°C~35°C
  7. Relative humidity:  ≤85%.
