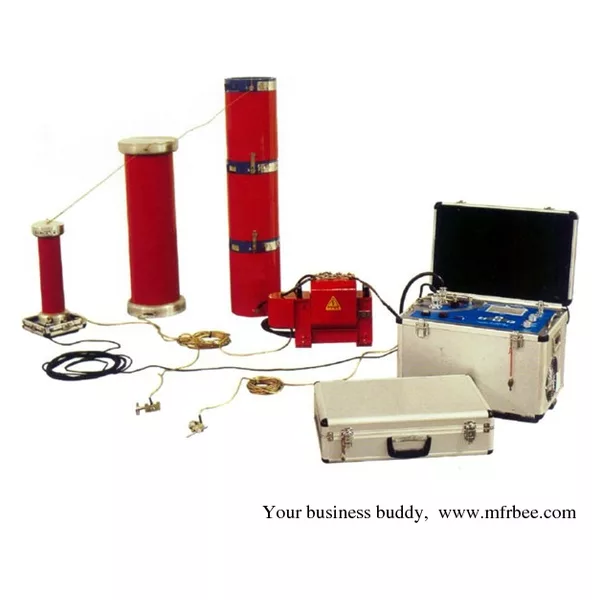

GDFA Frequency Adjustable Resonance Test Kit

GDFA Frequency Adjustable Resonance Test Kit

I.Application:

• Frequency Adjustable resonance test set is applied to testing the insulation ability of insulation materials in power equipment.
• The frequency of test voltage is adjustable which would lead to series resonance in testing circuit.
• Both the conductors connected in test circuit in series and the capacitors connected in test circuit in parallel are also adjustable.
• That makes the test set is widely applied in GIS, Power cable and generator insulation tester.

II.Technical parameters:

1. Max voltage output: 0~1000KV;

2. Max output Capacity: 0~6400KVA;

3. Test frequency range: 30~300HZ;

4. Frequency setting resolution: 0.1HZ;

5. Test voltage waveform: sine wave, waveform deviation factor : ≤1%;

6. Power supply: 380V±10%, three-phase 50Hz/60Hz

7. Environment condition: Temperature: 0~50°C

8. Humidity: ≤ 80%RH
