Hydraulic Concrete Placing Boom

Product sourcing details

Place of Origin
China

Supplier: Jiuzhou Pump Pipe Manufacturing Co., Ltd.

Purchasing information

Minimum order
1
Lead time
15 Days

Please confirm with the supplier: Model / reference, Key specifications / compatibility, Samples, Export markets, Supply capacity.

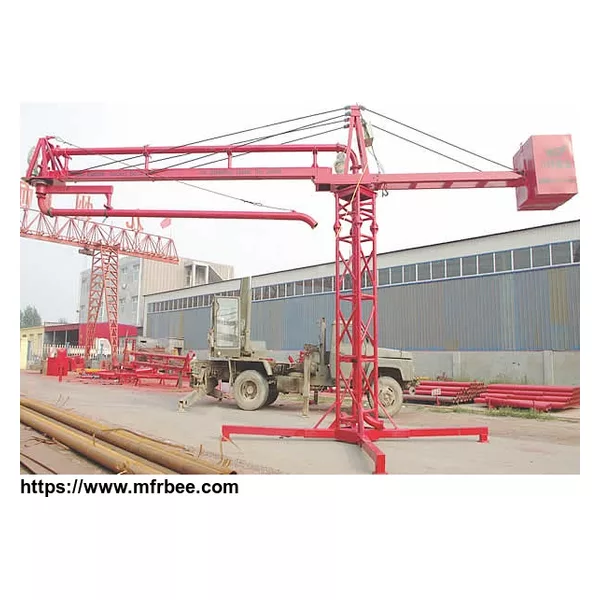

Electric Concrete Placing Boom

The Electric Concrete Placing Boom includes supporting steel pipes, pipe supports, pull bars, a beam.etc.Installed on the slewing supporting holder, the main beam frame can rotate 360°.
  • Description
  • Model
  • Performance
  • Application
TheElectric Concrete Placing Boomincludes supporting steel pipes, pipe supports, pull bars, a beam.etc.
Installed on the slewing supporting holder, the main beam frame can rotate 360°. Pipe supports on the front beam are used to fix and support delivery pipelines. The balancing frame on the rear beam is installed to achieve the balance.
The Electric Concrete Placing Boom series is structurally stable and reliable, operationally portable and flexible.

ModelHGD-12HGD-15HGD-18
Reach, m121518
Area, ㎡5007501050
Height, m4.555
Pipeline Dia., m133*4.5133*4.5133*4.5
Overall Weight, kg120014001600
Arm A Rotation, °360360360
Arm B Rotation, °350350350
Operating Weight, kg7008501050
Rotation Speed, r/min0.5-0.80.5-0.80.5-0.8
