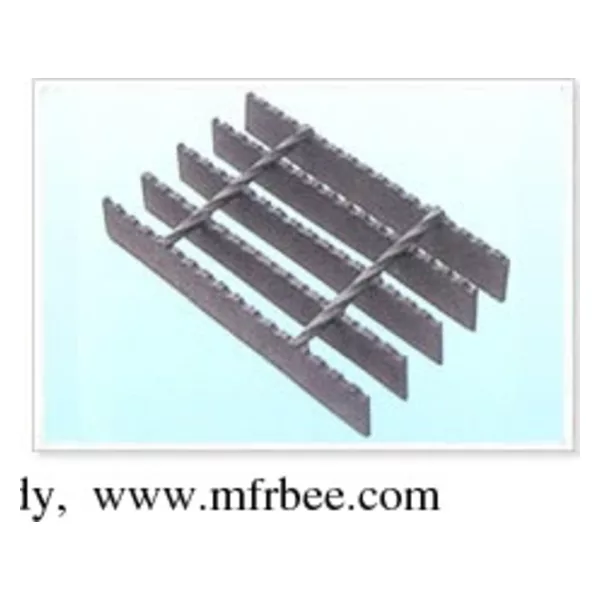

Welded steel grating, stainless steel and mild steel bars grating

Packaging: N/A

Delivery: 15 Days

Welded Steel Grating used for stair treads and various floor

Mild steel - We utilize a high quality mild steel for load bearing bars, which exceeds the strength of ASTM A36, BS4360 Grade 43A and JIS G3101 SS400, KSD3505 SB41. This is particularly beneficial where a floor is subjected to wheel loads, as deflection becomes a subordinate consideration to the ability of the load bearing bar to withstand high stress. Stainless Steel – Floor can also be manufactured from stainless steel. The normal grade used are 304 and 316, but other grades can be considered upon request.

Manufacturing Standards HongSheng steel gratings are designed and manufacture in accordance with relevant international standards. The figures found in the load and deflection tables are calculated in compliance to national standard, while the manufacture conforms to the requirement of international standard.

Common sizes of our steel grating bar:Pitch of Bearing Bar A center distance between the two bearing bars adjacent to each other. Common pitch : 30mm & 40mm Other : 12.5mm, 15mm, 25mm, 60mmPitch of Cross Bar A center distance between the two cross bars adjacent to each other. Standard pitch : 50mm & 100mm.

NOTE: Difference spacing of bearing bar & Cross bar can also be manufacture upon request.Uses: Electro-Forged Steel Grating can be used as industrial trucks, stair treads and various floorings.

The grade of pressure lock steel grating:

DG325/40/100 DG325/40/50

DG325/30/100 DG325/30/50

Commonly used criteria singlet for pressure welding galvanized steel grating products form （width≥800mm）

Specifications kg/m2

DG203/30/ 10050 21.124.3

DG253/30/ 10050 25.628.8

DG323/30/ 10050 31.835.1

DG403/30/ 10050 39.142.2

Specifications kg/m2

DG203/40/ 10050 17.220.4

DG253/40/ 10050 20.623.9

DG323/40/ 10050 25.528.8

DG403/40/ 10050 31.134.4

Specifications kg/m2

DG205/30/ 10050 33.136.2

DG255/30/ 10050 40.543.7

DG325/30/ 10050 51.054.2

DG355/30/ 10050 55.658.8

DG405/30/ 10050 62.966.1

DG455/30/ 10050 70.473.6

DG505/30/ 10050 78.381.1

DG555/30/ 10050 85.188.2

DG605/30/ 10050 93.096.0

DG655/30/ 10050 100.4103.5

Specifications kg/m2

DG205/40/ 10050 26.629.8

DG255/40/ 10050 32.435.6

DG325/40/ 10050 40.543.7

DG355/40/ 10050 43.947.2

DG405/40/ 10050 49.853.0

DG455/40/ 10050 55.658.8

DG505/40/ 10050 61.464.6

DG555/40/ 10050 66.970.1

DG605/40/ 10050 72.775.6

DG655/40/ 10050 78.882.1
