Plain Mild Steel Grating
Product Quick Detail
- Minimum Order
- 1
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
Mild steel grating is very strong and safe for the support of floors, platform stair treads and elevated walkway. It is a low cost flooring metal with no galvanizing or hot dipped coating protection, suitable for common industrial uses.
Steel Standard: China GB700-88 / ASTM (A36) / BS4306 (43A)
Qindelin mild steel grating meets the following standards:
China YB/T4001-1998
America ANSI/NAAMM (MBG531-88)
Britain BS4592-1987
Australia AS1657-1992
Standard Specifications:
Grating Dimension:
Load Bearing Flat Bar size
Thickness≥3mm, depth ≥19mm
19X3,19X5,20X3, 20X5, 25X3, 25X4, 25X4.5, 25X4.7, 25X5, 40X6, 40X8, 40X10, 90X6
Pitch of Load bearding flat bars(mm): 12.5,15, 20, 30, 30.6,? 32.5, 34,? 34.8, 35.3, 40, 60, 80
Pitch of cross bars(mm): 38.1, 50, 50.8, 70, 75, 80, 100, 101.6, 102
Custom sizes available. The sizes and dimension is not limited to above.
Grating types: Flat bar: plain type, plain I type; serrated type, serrated I type; cross bar: round type and square twisted type.
Finishing treatment:
a. Galvanized: Steel grating with zinc protection coating;
b. Untreated steel: Carbon steel or mild steel grating, black natural steel color, non galvanized;
c. Painted: Steel grating painted into colors.
Processing:
Mild or carbon steel grating is made of carbon steel plates of certain sizes through the processing of grooving, lock-pressure, welding, finishing and other treatment.
Uses:
Mild steel grating is used for the support of floors and elevated walkway, platform aisle,ventilation windows,wells, advertising plaque and other construction.
Samples Illustration:Carbon Steel Bar Grating

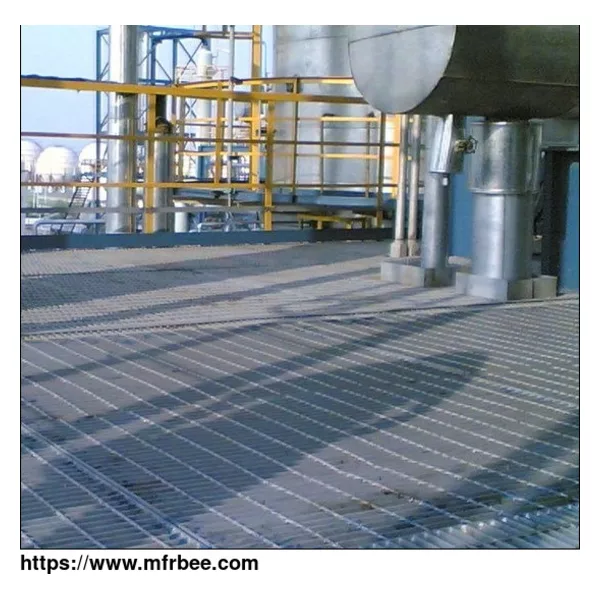

Application Illustration:Walkway Grating
- Country: China (Mainland)
- Business Type: 制造者
- Market:Africa
- Founded Year:2008
- Address:No.168 New Development Zone, Dezhou, Shandong, China
- Contact:Dong Zizhan
