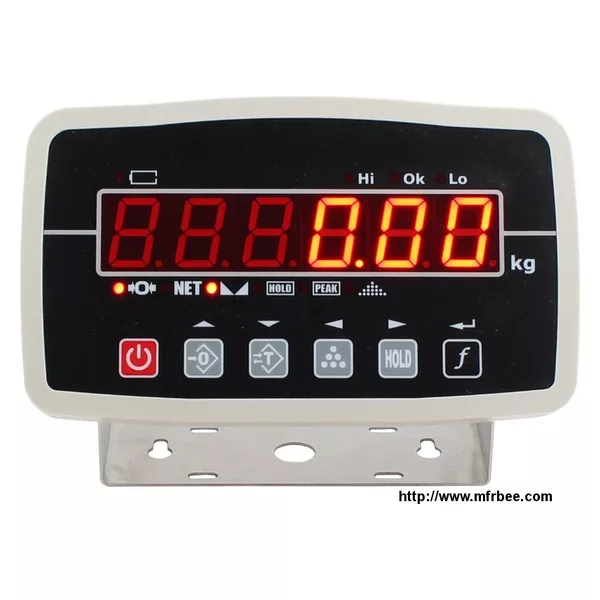

Weighing indicator Large LED display HF12

Description

Digital Weight Indicator

1. Enhanced ABS plastic enclosure

2. large 6-digit display

3. 6-button keypad

Features

1. 6-digit 1.2inch super luminant LED display

2. 6-digit 40mm LCD display with LED backlight

3. 6-key flat membrane panel keypad

4. One configurable user-defined function key

5. One configurable software set-point

6. Supports 4- and 6-wire loadcell connections

7. Drives up to 4X350ohm or 8X700ohm loadcells

8. Built-in 6V/4.0Ah rechargeable battery

Specifications

1. Accuracy Class: III Class (eqv. to OIML R76)

2. Internal Resolution: 1 000 000 counts

3. Tare range: 100%F.S.

4. Auto-Zero range: 20%F.S.

5. Manual-Zero range: 4%F.S.

6. Center of Zero: ±0.25d

7. Return-to-Zero Range: 5.0d

8. Zero-tracking: 0.5d/s

9. Loadcell Excitation Voltage: 3.00±3% Vdc (typ.)

10. AC Power Supply: 110/115 or 220/230Vac 50 or 60Hz

11. Operating Temperature: -10 ~ +40 degC (+14 ~ +104 degF)

12. Operating Humidity at 20 degC: 0 ~ 90 % (rel.)

13. Enclosure Dimensions: 25 x 15 x 10 cm (10 x 6 x 4 inch)

14. Indicator Net Weight: 1.55 kg (3.40 lb)

Options

1. Measurement unit switch

2. Calibration switch with seal protection

3. One full duplex RS-232 serial port

4. One RS-485 serial port

5. One RS-232 extended printer port
