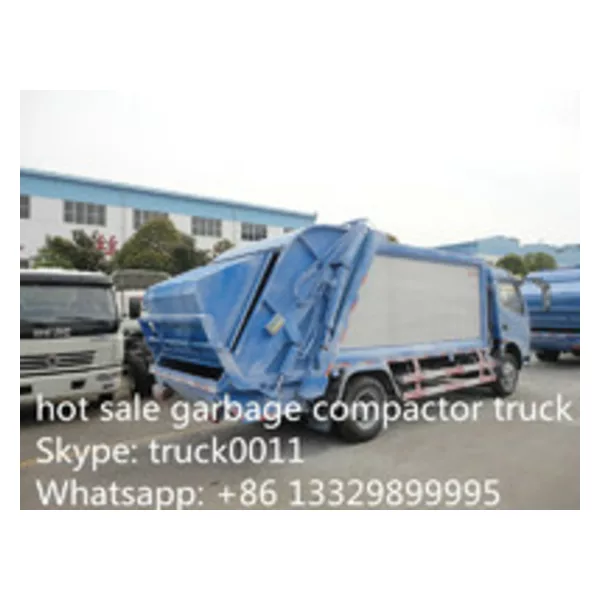

compression garbage truck for sale

Chengli Special Automobile Co., Ltd is a professional garbage compactor trucks manufacturer,all kinds of compactor truck can be provided.

1.famous brand chassis Factory supply compression garbage truck for sale

2.Good quality& Factory price compression garbage truck for sale

3.Fully passed 3C BV & ISO SGS compression garbage truck for sale

Garbage Compactor truck is the machinery of choice for door to door collection of waste. The collected waste is simultaneously

compacted and eventually transported to the dumping site. Compactors have multiple benefits over conventional waste trolleys namely: Waste is covered and there is no chance of "spillage" of waste during transportation. Continuous compaction allows more waste to be stuffed onto a truck which reduces the number of round trips to the dumping site. This results in significant fuel saving. Waste collected inside the compactor is pushed out of the container through a hydraulically powered Ejection Plate. Two men are required to perform the entire functionality of the compactor namely, driver and operator.

compression garbage truck for sale

Model Name	CLW compression garbage truck for sale
Driving Type	4×2,left hand drive
Weights
Rated payload weight(kg)	6000
Curb weight(kg)	3920
Dimensions
Wheelbase(mm)	3360
Overall Dimension(mm)	6195×2080×2510
Box dimension (mm)	××
Garbage box (mm)	Bottom 4mm,side 3mm
Max speed(km/h)	100
Engine
Engine model	4KH1-TC(130HP)
Engine type	Inter-cooling,water-cooling,electrical control high-pressure ,
No. of cylinders	straight-4 cylinders
Displacement(L)	2.99L
Max. output (kw)	96kw
Max torque	280N.m
Drive Line
Transmission	MSB,5 forwards,1 reverse gear,manual operation
Fuel tanker(L)	100
Cab
Air container	Have
Standard configuration	Sound,USD,electrical windows
Axle
Front axle	2.2 tons
Rear axle	4.8tons
Tire specification
Tire specification	7.00-16 standard tire,6 tires+1 spare tire

Up-Structure configuration

Basic Equipments of Up- Structure	6-12m³ garbage body
Basic Equipments of Up- Structure	Electronic control system, through the riser, slop collecting device, pushing shovel, garbage box and other special devices, to achieve waste into or crushed or flattened, the force loading, the trash and compacted to squeeze into the garbage box and unloading. Its main characteristic is garbage collection method is simple, efficient, with automatic repeated compression and creep compression.
Time of one filler cycles(s):	less than or equal to 18
Lifting time of filler(s)	8/10
Time of discharge(s)	less than or equal to 28
Max compression(kg)	more than 12000
