altitude operation truck Main Technical Parameter | |||

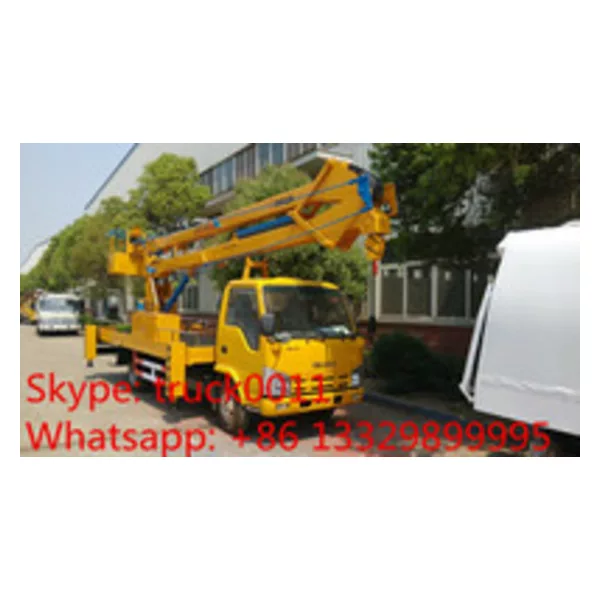

Product Name | ISUZU 16m high altitude operation truck for sale | Gross Vehicle Weight (kg) | Approx 5405 |
Curb Weight (kg) | 5080 | Overall Dimension(mm) | 7400X1980X3100 |
Working Height(m) | 16m | Cab Allowed Persons | 3+3 |
Axle No. | 2 | Wheelbase (mm) | 3308 |
Chassis Technical Parameter | |||
Chassis Model | QL1070A1HWY | Chassis Name | Truck Chassis |
Chassis Brand | Dongfeng | Manufacturer | ISUZU Automobile Co., Ltd |
App./ Dep. Angle(º) | 24/12 | Tire No. | 6 with 1 spare tire |
Leaf Spring No. | 8/6+5 | Tire Spec. | 7.00-16 14PR |
Fuel Type | Diesel | Front Track (mm) | 1504 |
Drive Type | 4x2 LHD or RHD | Rear Track (mm) | 1425 |
transmission | ISUZU MSB 5 speed transmission | Driver cab | ISUZU double rows car trim driver cab , original air-conditioner |
Steering type | Power steering | Brake | Oil brake with vacuum booster pump |
bridge | 2 ton front bridge/4.8ton rear bridge | Front/rear suspension(mm) | 1015/2180 |
Engine Technical Parameter | |||
Engine Model | 4KH1-TCG4O | Emission Standard | Euro 4 |
Displacement ( ml ) | 2999 | Power (KW) | 88(120hp) |
Work platform parameter | 1. Working platform rating load 200kg(2 people) | ||
2. Max operation height: 16m; | |||
3. Max working platform range: 6.5m | |||
4.Max rotation angle:360° | |||
5. rotation speed: 0—2r/min | |||
Superstructure parameter: 1. Rotational alert lamp on the top of the cabin. 2. Four hydraulic outriggers which can be operated independently or simultaneously. 3. Insulated bucket for worker to operation. 4. Imported electro-hydraulic ratio control valve. 5.Working height: 10-16m; working arms: 3 folded telescopic arm, 360° continuous rotation, 6. Equipped with auxiliary lifting hanger loading 1 ton. |
