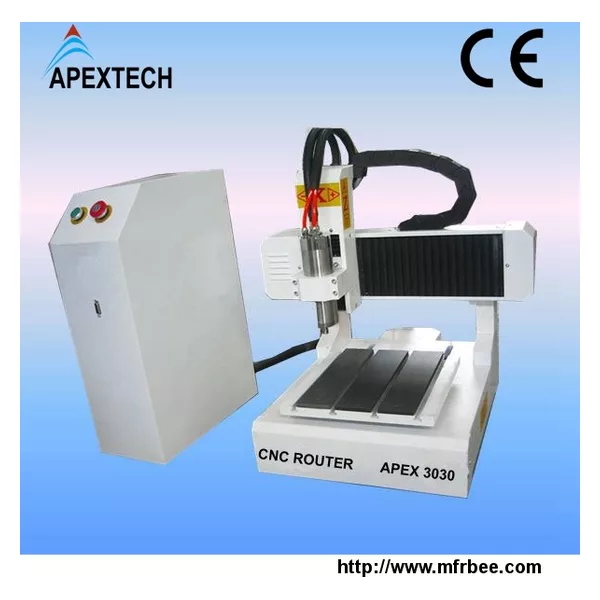

Parameter
All of these models can be customized according to customerrequirements.
NO. | Description | Parameter |
1 | X,Y,Z working area | 300*300*50mm |
2 | Drive and motor | Yako stepper motor/driver |
3 | Machine table size | 600*740mm(500*640mm) |
4 | Spindle | 0.8kw or 1.5kw watercooling /aircooling spindle |
5 | Inverter | Fuling frequency inverter. |
6 | Control system | NCstudio/ Mach3/DSP controller |
7 | X, Y, Z Travelling Positioning Accuracy | ±0.05/300mm |
8 | X, Y, Z Travelling Repositioning Accuracy | ±0.05mm |
9 | X, Y, Zstructure | Taiwan TBI Ballscrew, Hiwin square rails on X, Y, Z axis |
10 | Max Rapid Travel Rate | 10,000mm/min |
11 | Max working speed | 8,000mm/min |
12 | Working voltage | AC220V, single phase |
13 | Command languages | G code |
14 | Running Environment Temperature | 0 degree - 45 degree |
15 | Software | Type3 English version; Artcam English version |
16 | Package size | 850*850mm*800mm |
17 | Net weight | 90KGS. |
18 | Gross weight | 150KGS. |
19 | Relative Humidity: | 30% - 75% |
20 | Guarantee | One year from the date of commission |
21
|
Optional Accessories |
①Rotary system
②Mist-cooling system |
Application
Suitable to processsign and mark manufacturing, acrylic board processing, as well as stamp and PCB cutting,
mainly for hobby using.
