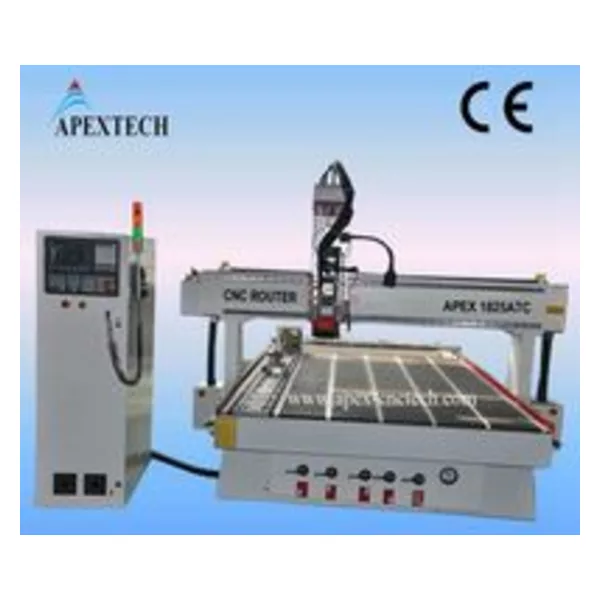

APEX 1825 LATC CNC Router auto tool change
Product Quick Detail
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- wooden box
- Delivery
- 15 Days
Specifications
Parameter
All of these models can be customized according to customer requirements.
| NO. | Description | Parameter |
| 1 | X,Y,Z working area | 1800*2500*200mm (LATC) |
| 2 | Drive and motor | Servo model |
| 3 | Spindle | 9kw HSD aircooling spindle with liner auto tool changer |
| 4 | Inverter | Delta frequency inverter |
| 5 | Control system | Syntec controller |
| 6 | X, Y, Z Travelling Positioning Accuracy | ±0.05/300mm |
| 7 | X, Y, Z Travelling Repositioning Accuracy | ±0.05mm |
| 8 | Z axis structure | Taiwan TBI Ballscrew, Hiwin square rails on Z axis |
| 9 | X, Y axis structure | Rack and pinion, Hiwin square rails on X, Y axis |
| 10 | Max Rapid Travel Rate | 45,000mm/min |
| 11 | Max working speed | 20,000mm/min |
| 12 | Working voltage | AC220V/380V, three phase |
| 13 | Command languages | G code |
| 14 | Running Environment Temperature | 0 degree - 45 degree |
| 15 | Software | Type3 English version; Artcam English version |
| 16 | Net weight | 2400KGS; |
| 17 | Gross weight | 2600KGS; |
| 18 | Relative Humidity: | 30% - 75% |
| 19 | Guarantee | One year from the date of commission |
|
20
|
Optional Accessories |
①Rotary system
②Mist-cooling system ③Dust collector/ Dust hoods ④vacuum pump |
Application
● Furniture: ideally suitable for processing cabinet door, wooden door, solid woodfurniture, panel
wood furniture, windows, tables and chairs, etc.
● Other wooden products: stereo box, computer desk, musical instruments,etc.
● Well-suited for processing panel, insulating materials, plastic, epoxy resin,carbon mixed
compound, etc.
Youtube links:
NO.1 jinan linear ATC cnc router with 8 changing tools
NO.2 cnc liner ATC auto tool changing cnc router for wood doors
NO.3 apextech cnc with the saw cutting wood
