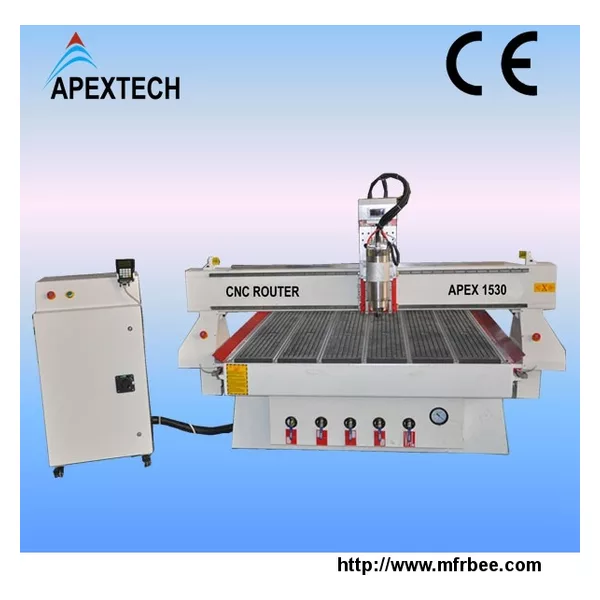

Features
1. Entire solid steel frame structure, can resist vibration (tempering) treatment, with good rigidity and no
deformation in the long run;
2. High-frequency 3kw/4.5kw/6kw watercooling/ Italy HSD aircooling spindle;
3. Mach3/DSP/NCstudio/Syntec controller on the large router cnc;
4. Manual/Auto Tool Calibration;
5. With selective high precision dual-motor servo cnc drives for Y-axis, matching to ensure smooth
movement and increase speed;
6. Hiwin square guide rail from Taiwan, with huge bearing capacity, smooth operation, high precision and
long service life;
7. With strong compatibility with a series of CAD/CAM design and fabrication software such as type3
/artcam /artcut;
8. With powerful vacuum system to assure clean-up of dust during the processing.
Parameter
All of these models can be customized according to customer requirements.
NO. | Description | Parameter |
1 | X,Y,Z working area | 2000*3000*200mm(1500*3000*200mm, 1300*2500*200mm) |
2 | Drive and motor | Yako stepper motor/driver; yaskawa servo motor/driver |
3 | Spindle |
3kw/4.5kw/6kw watercooling spindle;
3kw/4.5kw/6kw HSD aircooling spindle. |
4 | Inverter | Delta frequency inverter |
5 | Control system | NCstudio/ Mach3/DSP controller |
6 | X, Y, Z Travelling Positioning Accuracy | ±0.05/300mm |
7 | X, Y, Z Travelling Repositioning Accuracy | ±0.05mm |
8 | Frame | Big thickened Steel Square Tubes, thickness up to 8mm |
9 | X, Y structure | Rack and pinion, Hiwin square rails on X, Y axis |
10 | Z structure | Taiwan TBI Ballscrew, Hiwin square rails on Z axis |
11 | Max Rapid Travel Rate | 30,000mm/min |
12 | Max working speed | 18,000mm/min |
13 | Working voltage | AC220V/380V, single/three phase |
14 | Command languages | G code |
15 | Running Environment Temperature | 0 degree - 45 degree |
16 | Software | Type3 English version; Artcam English version |
17 | Net weight | 2100KGS;1750KGS;1550KGS |
18 | Gross weight | 2300KGS;1950KGS;1750KGS |
19 | Relative Humidity: | 30% - 75% |
20 | Guarantee | One year from the date of commission |
21
|
Optional Accessories |
①Rotary system ②Mist-cooling system ③Dust collector/ Dust hoods for three axis ④Vacuum pump ⑤850w Yaskawa/800W Panasonic Servo motors |
