SAMSUNG Exynos4412 embedded board,ARM Cortex A9, Android 4.2

http://armdevs.com/Tiny4412.html

Tiny4412 Features

1.5GHz Quad core ARM Cortex-A9 MPCore

1GB DDR3 RAM&4GB eMMC Flash

HDMI 1.4a output(1080P@30fps)

support HD LCD with capacitive screen

Android 4.2 support and BSP Provide

Tiny4412 CPU Board Feature

CPU processor

Samsung Exynos4412, Cortex-A9 Quad-Core, 1.5GHz

Memory

RAM: 1GB DDR3 RAM, 32bit data bus

Flash: 4GB eMMC Flash(Optional 8/16/32GB eMMC Flash)

Pin interface

2 x 70 pin 2.0mm space DIP connector

2 x 34 pin 2.0mm space DIP connector

On-board resources

4 x User LED (Green)

Supply Voltage from 2V to 6V

PCB Size

8 layer, 74 x 55 x 10 (mm)

Software support

Android 4.2 support, provide BSP source code

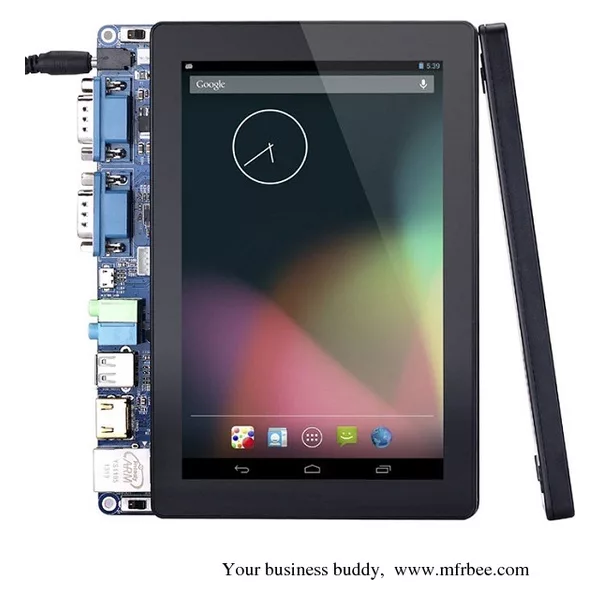

The Base Board Feature(Tiny4412SDK)

The interface define for Tiny4412SDK is as follow, the current version is Tiny4412SDK 1306.

Three LCD interfaces: One 40-pin 0.5mm-pitch chip blocks, a 45-pin interface supporting capacitive touchscreens, and a 44-pad interface; displays from 3.5" to 19" are supported

HDMI 1.4a Output, Support MPEG-4/H.263/H.264 format and 1080P@30fps HD play.

Audio input and output using the WM8960 professional audio chip (3.5mm audio input and output jacks on board), containing Class D amplifier and on-board microphone;

RJ45 Ethernet port using DM9621, 10/100M adaptive

Four serial ports, two of them converted to RS232 and lead through DB9 connectors (COM0, COM3); TTL level available through the CON1, 2, 3, 4 blocks

One USB HOST 2.0 interface

mini-USB Device port, USB 2.0 specification

CPLD Expand chips support

RTC clock with a battery backup (battery may or may not be included depending on international mailing restrictions)

G-sensor (so you can have automatic vertical/horizontal display switching)

SDIO interface: used to connect an SD WiFi module

CMOS Camera interface pins

One ADC inputs that connected to potentiometer

AT24C08 (256 Byte) EEPROM for I2C test

Buzzer support

Five user buttons

GPIO Expand interface

Two-layer PCB

Motherboard dimensions: 180 × 140 mm

Power supply: DC 5V through barrel connector or 4-pin connector block
