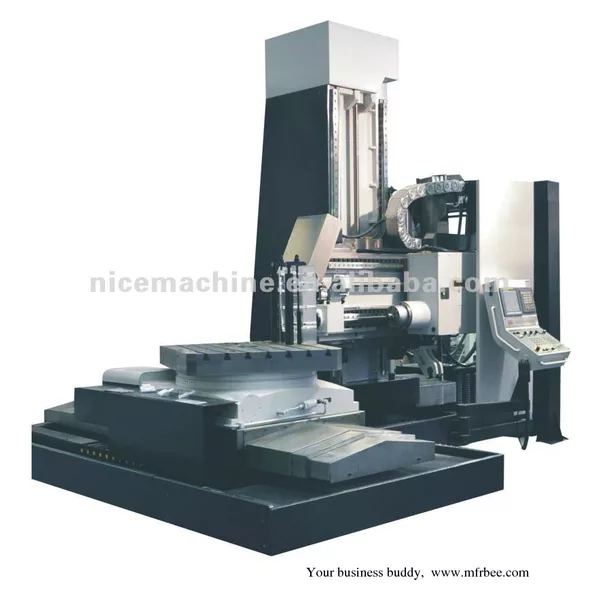

NCS6Z series numerical control drilling and milling machine

Project: NCS6Z1212-1100

X-axis(travel of work bench)(mm) :1200

Y-axis(travel of sliding plate)(mm) : 1200

W-axis(travel of vertical pillar)(mm): 500

A axis(rotation of squar guide way)(degree) :The main shaft head up 15 degrees and down 25 degrees

Maximum drill depth of gun drill(mm) : 1100

Drilling diameter of gun drill(mm) : Φ3-30

Size of rotating table(mm) : 1200Χ100

Load-bearing of work bench(T): 5

Taper of main shaft end: BT40

External size of machine tool (mm): 6200Χ4600Χ3710

Total weight of machine tool(T) : 18
