Powered hoist

Capacity       0.5Ton-10Ton (Ultra Low Headroom)

Standard Lift   3 m

Use           Lifting Up/Down,Traversing Left/Right

Drive Mode    Motor

Sling Type     Chain

Operation    With pedant cable push button or remote control

Power Supply  220v-700v, 50/60 Hz, 3 phase, single or dual voltage

Control Voltage 24v, 36v, 42v, 48v, 110v

H.S. Code      84251100

Package       Plywood case

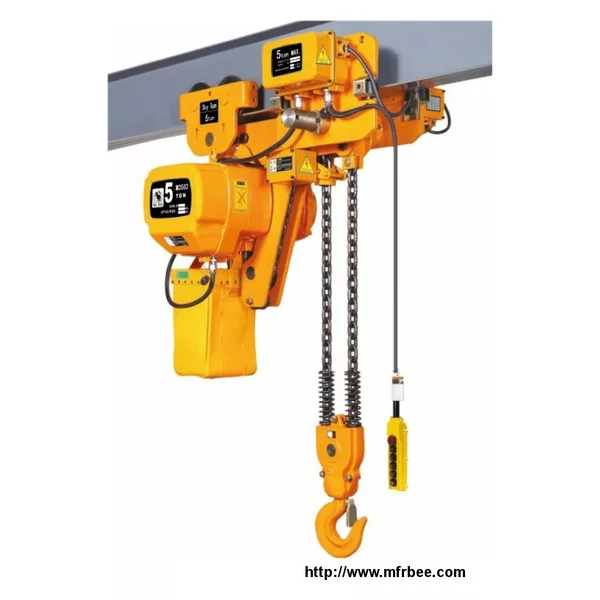

Ultra Low Headroomelectric chain hoistis uniquely designed to have a shorter headroom than that of standard electric chain hoist, the product is the most suitable for installation which requires a low ceiling of building or maximizes effective lift, the left trolleys are available as option (could be plain trolley, geared trolley or motorized trolley)

Detailed Description

1. Shell

They are made of Light aluminum alloy through compression casting formation.

Advantages: Solid and light but hard

Fast release heat

Continuous use

Enclosed structure

Can be usedin the terrible work environment with a high heat dissipation rate and all tightness design.such us chemical plants, electroplating factories, and other places.

2. Support frame

The loading support frame consists of two steel plates, which is extremely sturdy.
