lifting equipment

Features

• Compact body - small cubage and lightweight
• Smooth, convenient and ergonomic operation
• Reliable safety
• Enhanced durability
• Easier maintenance
• Environmentally friendly
• Nice appearance
• Low noise

Capacity 0.5Ton-5Ton (With Plain Trolley)

Standard Lift 3 m

Use Lifting Up/Down

Drive Mode Motor

Sling Type Chain

Operation With pedant cable push button or remote control

Power Supply 220v-700v, 50/60 Hz, 3 phase, single or dual voltage

Control Voltage 24v, 36v, 42v, 48v, 110v

H.S. Code 84251100

Package Plywood case

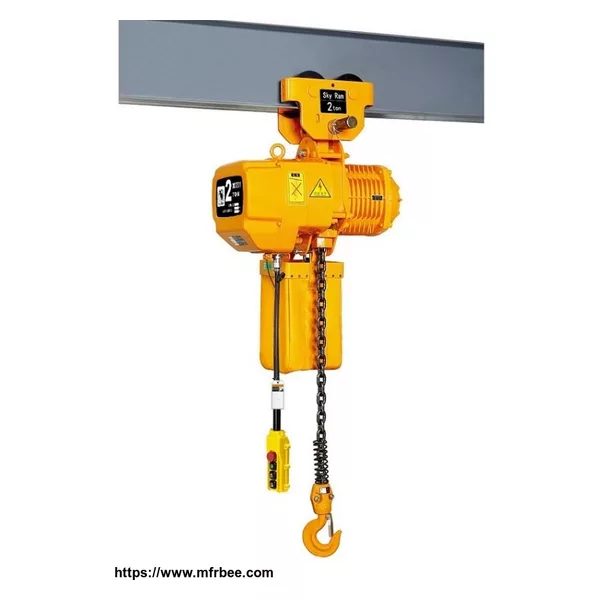

Electric Chain Hoistis a new style and small lifting equipment, is an ideal tool to lift heavy objects, load and unload, maintain equipment. Also called Electric hoist, Electric lifting hoist, Monorail hoist, Powered hoist, Powered chain hoist, Hoist.

It uses squirrel cage motor for driving.

It is widely used in factories, mines, agriculture, electric power, construction building site, dock and warehouse.

Detailed Description

1. Shell

They are made of Light aluminum alloy through compression casting formation.

Advantages: Solid and light but hard

Fast release heat

Continuous use

Enclosed structure

Can be usedin the terrible work environment with a high heat dissipation rate and all tightness design.such us chemical plants, electroplating factories, and other places.

2. Support frame

The loading support frame consists of two steel plates, which is extremely sturdy.

3.Side magnetic braking device

It is the latest design which is featured for generating magnetic force.

This masterly structure ensure the hoist absolutely safety when the power off. And ensures it is safe when overload.

Also it combines to the motor braking as the double brake system to strengthen security and durability.

4.Inverse phase sequence protecting device

It is the special electrical installation which controls the circuit not to work in case of wiring error in the power supply.

Advantages: When power-supply wiring mistake, the control circuit is unable to move.

5. Limit switch
The limit switch device is installed where the weight is lifted on and off to make the motor to stop automatically so as to prohibit the chains from exceeding for safety.

6. Transformer: 24V/36V transformer device
It is used to prohibit the emergencies from occuring in case of the leakage in the switch.

It guarantees safe while use in rain.

7. Gear

The gear is made of alloy steel and through the heat treatment.

8. Hooks

They are made by hot forging and heat treatment with perfect strength that is hard to break, the operation safety of the lower hook is ensured by its 360 degree rotation and safety tongue piece (latch).

9. Chain

It is made of FEC80 ultra strong heat treatment aluminum alloy steel.

Advantages: It is safely approximately when used in the rain water, the sea water, under the chemical and other bad conditions.

10. Chain bag/container
It is light, handsome and durable.

11. Push button

Waterproof push botton is applied, it is light and durable, come with the E-stops.

12. Classification: M4, M5 (ISO); 1Am, 2m (FEM); H4 (ASME)

Insulation grade: F

Suspension varieties: Hook, manual trolley, motorized trolley

Operating temperature: -20 to 40 ℃ (-4 to 104 °F)

Operating humidity: 85% RH or less.

13. Protection class(hoist and push button): IP54 (standard)

Standard one is for indoor use, It is suitable for outdoor operation but need to avoid directrain.

protection class should be improved (IP55) if for outdoor use, otherwise, Motor may be burned.

14. Noise(single/ dual speed): 81dB.
