SIC12000W Electric Winch
Product Quick Detail
- Packaging
- carton box, plastic bags, wooden cases or as your requirement
- Delivery
- 5-10 days after your payment
Specifications
Product Introduction chinacoal05

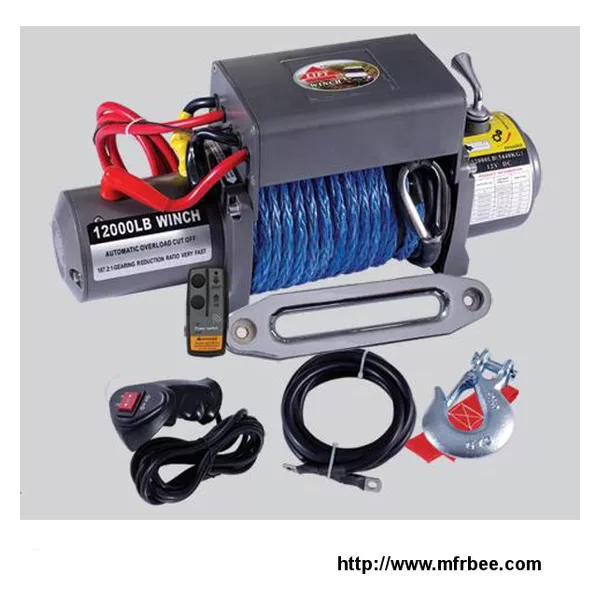

SIC12000W Heavy Duty Electric Winch
Main Parameter
Rated line pull: 12000LB (5443kg) single line
Motor: 6.6hp/4.8kw 12V,4.0hp/3.0kw 24V, Series Wound
Control: Remote switch,12ft(3.7m)lead
Gear train: 3 Stage Planetary
Gear reduction ratio:187.2:1
Clutch: Sliding Ring Gear
Braking Action: Automatic In-The-Drum
Drum Size: Φ2.52"(64mm)L8.82"(224mm)
Rope:Φ10mmX28m
Fair lead: 4-Way Roller Fair lead
Remote Control: Included
Battery: Recommended:650CCA minimum for winching
Battery Leads: 2 gauge,72"(183mm)
Finish: Dark gray powder coat
Overall Dimension: 21.1"x6.3"x9.5“
(537mmx160mmx280mm)
Mounting Bolt Pattern: 254mmx114.3mm
Weight: N.W. 26kg G.W. 28Kg
Packing size: 57x19x34.5cm 1PC/CTN
- Country: China (Mainland)
- Business Type: trading company
- Market:
- Founded Year:1994
- Address:No.69 Huoju Road, New & High Zone,Jining City,Shandong Province,China
- Contact:Elena Sun
