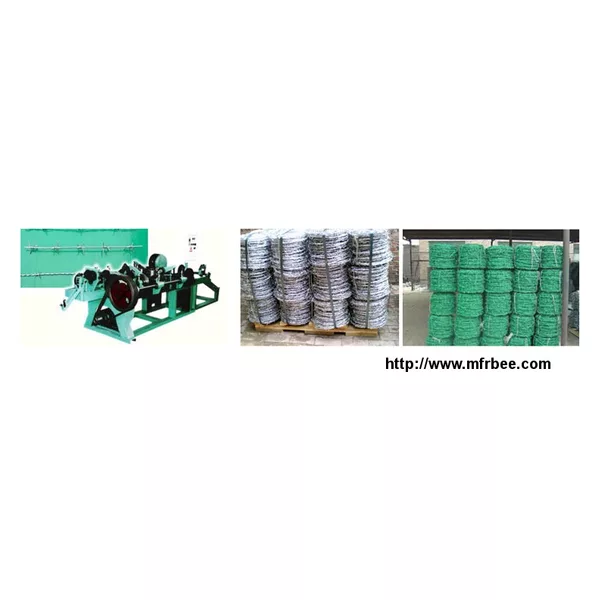

Barbed wire machine
Product Quick Detail
- China
- hebei
- Packaging
- N/A
- Delivery
- 15 Days
Specifications
In order to meet demands of market, meet the customer's requirement, the machine which our factory produces can not merely use the galvanized iron wire, suitable for the high-carbon steel wire and mild steel wire too.
Adopting the positive and negative way to rotate will wind flowers to the strand. The machine does not have resilience, wind phenomenon, it is easy to operate to install construction.
This machine main characteristic saves materials, easy to operate, the noise is low. The products of this machine are used in the shelter of the highway, railway, detention house, pasture, enveloping field, orchard.
Main technical paramete
| 1.Electrical motor | 3kw |
| 2. Main drive shafts of rotational speed r/min | 402 |
| 3.Complete machines and weight | 1500Kg |
| 4.External dimension (mm) | 1900*1300*980 |
| 5.Charge silk some size(mm) | 1800*750*750 |
| 6.Barb from(mm) | 76 (3 inches) 102 (4 inches) |
| 7.Rotate and count | 4 |
| 8.Shares of barb wire diameter(mm) | 2.2-2.8 |
| 9.Barb wire diameter(mm) | 1.8-2.2 |
| 10.Output: | 110kgs/hour |
