Cut thickness≤6mm, wide tolerance greatly 2000mm, material intensity cold-rolled stencil plate of 450N/mm2 wash the network hangar, wash and cut the specification test and obtain actually according to the razor blade of the net board form TB5-20: If when TB and TL change, wash and cut strength change: when TB, TL increase, wash and cut strength reduce; when TB, TL reduce, wash and cut strength increase. Damage the part in order to make the machine overload, the machine, TB, TL, reduce, wash, cut strength exceed name tonnage can reduce material prove degree and width solve.
This machine can be protected for the building, haberdashery and hardware, doors and windows, machine and the electronics industry manufactured goods wash and make various specification stencil plate networks.
This machine sends the material original reason host computer to transmit directly through gear wheel, ratchet wheel, cam, it is reliable that movements are accurate.
Send the material organization to wash to cut the number of times begin from 0, can cut off the arbitrary range.

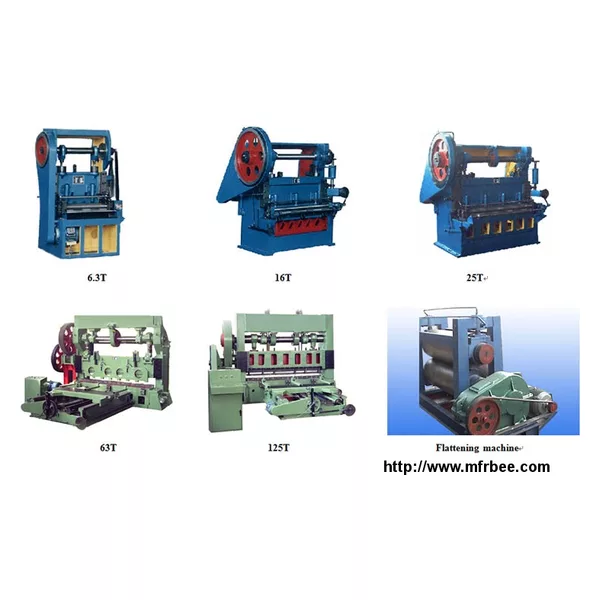

Type | 6.3T | 16T | 25T | 63T | 125T |
Punching sheet thickness | ≤1.0mm | ≤1.3mm | ≤1.5mm | ≤3mm | ≤6mm |
Punching sheet width | ≤600mm | ≤1000mm | ≤1250mm | ≤2000mm | ≤2000mm |
Times of sliding | 250r/min | 150r/min | 130r/min | 70r/min | 60r/min |
Power | 2.2kw | 3kw | 4kw | 11kw | 22kw |
Outside dimension | 1090x710x1450 | 1540x1400x1870 | 1600x1400x1870 | 3450x2300x2280 | 3500x2300x2400 |
Complete machine weight | 1.2T | 2.5T | 3.5T | 11T | 13T |
Opening mesh | ≤25mm | ≤40mm | ≤80mm | ≤150mm | ≤150mm |
