Reinforcing Welded Mesh for Concrete Reinforcement

Two Shapes of Reinforcing Welded Meshes

Reinforcing welded mesh, manufactured from 500MPa wire grade L, is usually used for concrete reinforcing. As concrete is weak in tension, applications of reinforcing welded mesh minimize the cracking on the surface of concrete in construction. Deformed or plain bars are welded in longitudinal and transverse directions to form different shapes of apertures, which mainly form square reinforcing mesh and rectangular reinforcing mesh. For square welded mesh, longitudinal and transverse wires support the whole strength at the same time, while for rectangular welded mesh, longitudinal wire is the supporting one.

Advantages

• Reinforcing welded mesh is manufactured in sheets and rolls, which makes the installation process quick and simple, and it saves time and binding wires.
• Its ribbed profile improves bonding to concrete elements, improving stress distribution, crack resistance, and strengthening stability of the construction.
• The reinforcing mesh can be designed according to the project requirement, which reduce the material and labor cost and improve the efficiency of the whole construction.
• It has great corrosion resistance and oxidation resistance.

Material and surface treatment
Low-carbon iron wire, steel bar, rebar wire, stainless steel wire, galvanized iron wire (electronic galvanized, hot-dipped galvanized), black iron wire, etc.

Specification

• The standard sizes for square and rectangular sheets and rolls are:
  • Sheets: 6m (length) × 2.4m (width) =14.4m².
  • Rolls: 60m (length) × 2.4m=144m².
• Wire diameter: 4mm to 40mm.

Square welded mesh

Product code	Standard Unit	Longitudinal wires (mm)	Cross Wires (mm)	Edge Wires (mm)	Weight (kg)
SWM81	Sheet	7.60@100	7.60@100	7.60@100	105
SWM102	Sheet	9.50@200	9.50@200	6.75@100	80
SWM92	Sheet	8.60@200	8.60@200	6.00@100	66
SWM82	Sheet	7.60@200	7.60@200	5.37@100	52
SWM72	Sheet	6.75@200	6.75@200	4.77@100	41
SWM62	Sheet	6.00@200	6.00@200	4.77@100	33
SWM52	Sheet	5.00@200	5.00@200	4.77@100	21
Notes: Take S8100 for example, SWM stands for square welded mesh, 8 is the diameter of main wires, 200 is the spacing of the bars.

Rectangular welded mesh

Product code	Standard Unit	Longitudinal wires (mm)	Cross Wires (mm)	Edge Wires (mm)	Weight (kg)
RWM71	Sheet	6.75@100	7.60@200	N/A	68
RWM81	Sheet	7.60@100	7.60@200	N/A	79
RWM91	Sheet	8.55@100	7.60@200	N/A	93
RWM101	Sheet	9.50@100	7.60@200	N/A	109
RWM111	Sheet	10.65@100	7.60@200	N/A	131
RWM121	Sheet	11.90@100	7.60@200	N/A	157
Notes: RWM stands for rectangular welded mesh, Other sizes of sheets are available: 4.80m × 2.4m, 3.6m × 2m, 2m × 4m. Cross wire diameter can also be 6.75mm.

Many plain rectangular reinforcing welded meshes

Many plain square reinforcing welded meshes

Many square reinforcing welded meshes with ribbed profile

Many rectangular reinforcing welded meshes piled together

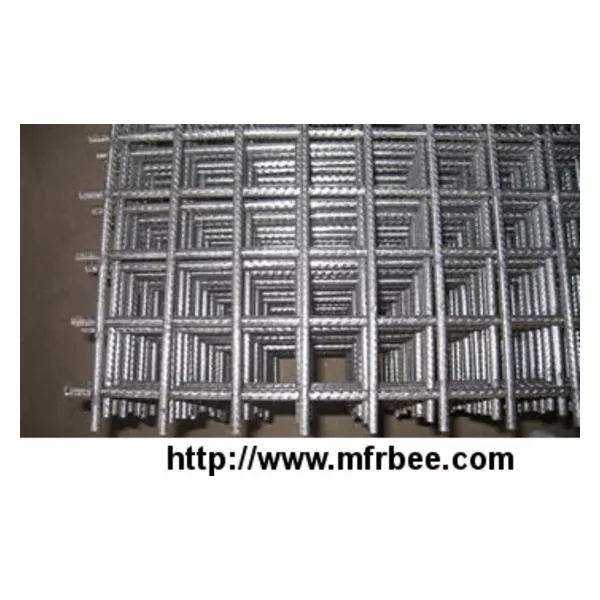

Reinforcing welded mesh can be made in sheets

Reinforcing mesh made in roll shape

Packing
In bulk, carton, pallet, wooden box, seaworthy packing, as required, etc.

Application
Reinforcing welded mesh is widely used for concrete construction reinforcement, floor slabs reinforcement, brick wall reinforcement, in airport, tunnel, highway, bridge, wharf, footpaths, etc.
