Trench Mesh Spacer for Rigid Cage Reinforcement

Trench Mesh Spacer is Used to form a Reinforcing Cage

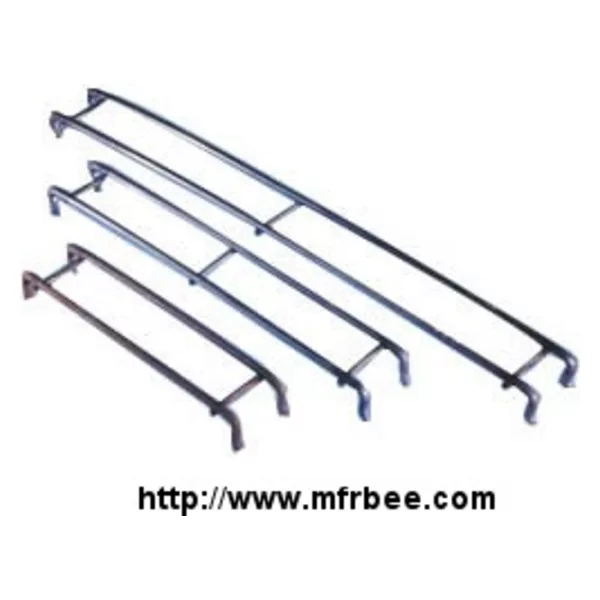

Three trench mesh spacers with different length

Three trench mesh spacers for different trench meshes

Trench mesh spacer, also called trench mesh clip, is a fast and efficient tool to form a rigid cage for foundation and footing beam where trench mesh is laid out.

Material
Galvanized steel, low carbon steel, stainless steel.

Features

Time saving.
Cost saving.
Work efficiency improvement.

Specification

Trench mesh spacer specification list
Product code	For trench mesh wire (mm)	Height (mm)	Pack quantity
TMS815	8	150	50
TMS820	8	200	50
TMS825	8	250	50
TMS830	8	300	50
TMS835	8	350	50
TMS840	8	400	50
TMS845	8	450	50
TMS850	8	500	50
TMS1120	11	200	50
TMS1125	11	250	50
TMS1130	11	300	50
TMS1135	11	350	50
TMS1140	11	400	50
TMS1145	11	450	50
TMS1150	11	500	50
TMS1220	12	200	50
TMS1225	12	250	50
TMS1230	12	300	50
TMS1235	12	350	50
TMS1240	12	400	50
TMS1245	12	450	50
TMS1250	12	500	50
TMS1620	16	200	50
TMS1625	16	250	50
TMS1630	16	300	50
TMS1635	16	350	50
TMS1640	16	400	50
TMS1645	16	450	50
TMS1650	16	500	50

Trench mesh spacer is installed to form a rigid cage

Trench mesh spacer is used for forming a cage

Installation and application

Trench mesh spacer is widely used for reinforcing foundations and footing beams.

Simply put one end of spacer on trench mesh cross wire at center of spacer cross wire, clip the spacer on bottom bar then put the top bar at center, snap the spacer locked to the mesh by firm hands, if loose, tap sideways to lock, then a rigid cage is formed.
