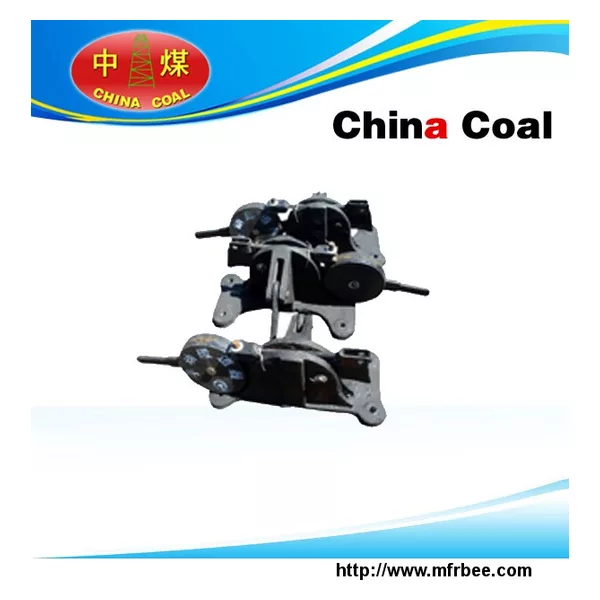

Railway horizontal switch apparatus

Place Of Origin: China

Packaging: according to your requirements

Delivery: 15 Days

Railway horizontal switch apparatus Brief Introduction

According to work in different ways can be divided into manual horizontal switch machine, manual spring switch, manual vertical switch device, according to the job requirement is divided into hand switch and power switch device.

To implement it in spring tension switch to trans, and keep it in the reverse function.

Apply to "force cases bifurcation fault “occurs easily switch, once crowded bifurcation will not damage the equipment.

It will be able to lock shaft wear into the locking hole on the base and add locks, make the switch lock in set against a state, to facilitate traffic bifurcation security.

Railway horizontal switch apparatus Features

1.Handle retractable 290 mm in length, when switch switch resistance is not big, can shorten the length of the handle, on the contrary, extend the length of the handle.

2.To reduce the handle pull (stroke, the handle can rotate 180 degrees, is advantageous for the human operation.

3.The scaling and rotation are brought by two spring pin handle tube, adjusted to fall into.

4.In order to overcome the resistance pulled, handle head slider structure design center of the sphere, which pulled the flexible structure.

5.Right Angle Abduction spindle rotation center, equipped with rolling bearings, improved product life and accuracy.

6.Between the holes where the rotation axis, are equipped with self-lubricating properties of the liner material.

7.The connection between the rod and the turnout, using a spinner, after the installation during use, so do not remove the connecting pin, you can open and dense paste on turnout status adjusted.

Country: China (Mainland)
Business Type: trading company
Market:
Founded Year:1994
Address:No.69 Huoju Road, New & High Zone,Jining City,Shandong Province,China
Contact:Elena Sun

switch apparatus

more images of Railway horizontal switch apparatus
