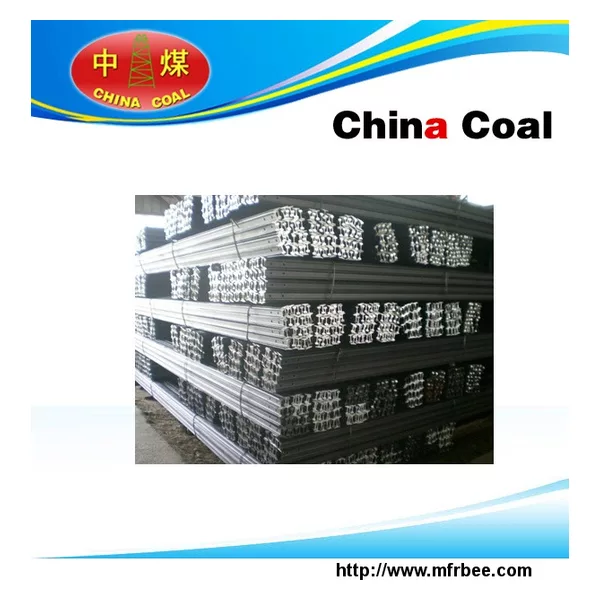

Light railway steel rail
Product Quick Detail
- Place Of Origin
- China
- Packaging
- according to your requirements
- Delivery
- 7 Days
Specifications
Product Introduction
Light steel rail 5 kg light railway rails 8 kg light steel rail 9 kg light steel rail 11 kg light steel rail 12 kg light steel rail 15 kg light steel rail 18 kg light steel rail 22 kg light steel rail 24 kg light railway 5 kg light steel rail chinacoal05
FEATURE:
Specification: 5kg--30kg/m
Material Q235B
Length: 6m/8m/10m/5m
Application: for mining
Main Parameter
| model |
size(mm)
A X B X C X D |
weight(kg) | length(m) |
| 5kg/m | 50x44x22x4.5 | 503 | 6m,8m,10m |
| 8kg/m | 65x54x25x7 | 8.42 | 6m,8m,10m |
| 9kg/m | 63.5x63.5x32.1x5.9 | 8.94 | 6m,8m,10m |
| 11kg/m | 80.5x66x32x7 | 11.2 | 6m,8m,10m |
| 12kgm | 69.85x69.85x38.1x7.54 | 12.2 | 6m,8m,10m |
| 15kg/m | 79.37x79.37x42.86x8.33 | 15.2 | 6m,8m,10m |
| 18kg/m | 90x80x40x10 | 18.06 | 6m,8m,10m |
| 22kg/m | 93.66x93.66x50.8x10.72 | 22.3 | 6m,8m,10m |
| 24kg/m | 107x92x51x10.9 | 24.46 | 6m,8m,10m |
| 30kg/m | 107.95x107.95x60.33x12.30 | 30.1 | 6m,8m,10m |
- Country: China (Mainland)
- Business Type: trading company
- Market:
- Founded Year:1994
- Address:No.69 Huoju Road, New & High Zone,Jining City,Shandong Province,China
- Contact:Elena Sun
