MFD series metalized film pulse capacitor
Product Quick Detail
- Packaging
- Oil filled capacitor with standard export cartons or according to customer's needing
- Delivery
- 15 Days
Specifications

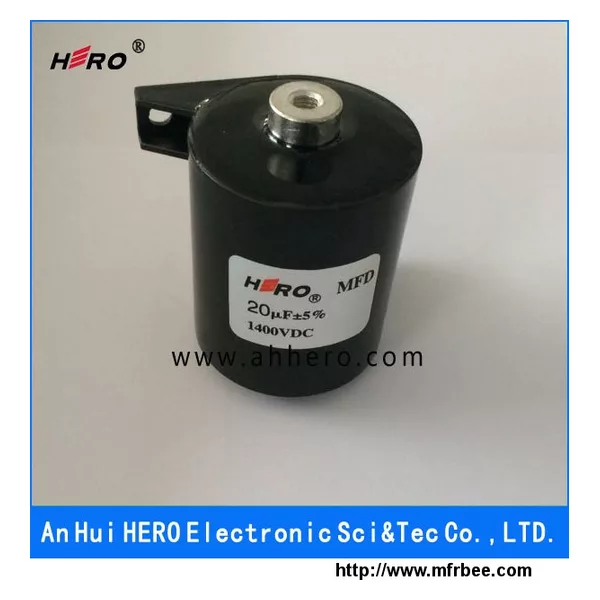

20UF 1400VDC Super MFD series of huge-capacity capacitor
Features
(1) Specific can density, capacitors energy storage is strong
(2) Low ESR, high ripple current handling capabilities and large current shock
(3) Low inductance,Dv/dt large,frequency characteristics is good
(4) Self healing property
(5) Long lifetime(>=100,000h)
(6)High vacuum note oil,heat dissipation of capacitor performance is stable and reliable
(7) Huge capacitance
(8) High thermal conductivity
Applications
1)Used for rail traffic traction or the ship drive converter
2)Used for various power industry inverter,such as high voltage variable frequency drive device
20UF 1400VDC Super MFD series of huge-capacity capacitor
Specification
| Temperature Range | -40°C~+85°C |
| Capacity Range | 20uF |
| Capacitance deviation | ±5%(J),±10%(K) |
| Voltage | 1400VDC |
| Dielectric | 1.5UN/60S |
| Dissipation | tgδ≤0.002(at 1KHz) |
| Insulation resistance | CxRs≥5000S(at20°C 100V.DC 60S) |
| Shock current capability | dv/dt>50v/μs |
| Flammability | UL94V-0 |
| Stray inductance | ≤30nH |
| Effective Current | 10~80A |
| Reference Standard | Enterprise standards in line with IEC61071 ,IEC61881 ,GB17702.1 |
| Case components | aluminum,plastic,304 stanless steel |
| Terminals | tinned brass nut or screws |
| Installation | whatever installation |
| Failure rate | 50 FIT |
Note: Capacitor other specifications and sizes out of the table are negotiable. For more details about our capacitors,pls feel free to contact us at any time. Oil Filled Explosion.
