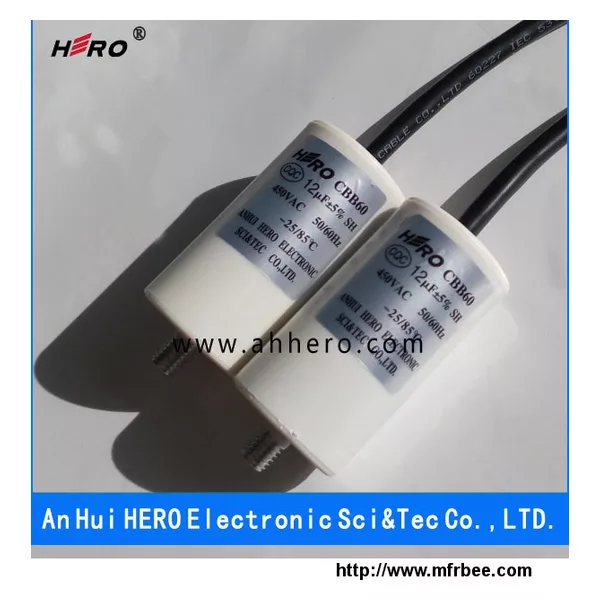

CBB60 start motor Capacitor
Product Quick Detail
- Packaging
- AC run capacitor Standard and Professional Package
- Delivery
- 15 Days
Specifications
450V 35μF AC Motor Run Capacitor
Specification of water pump CapacitorCBB60 capacitor takes heavy-edge metalized Al/Zn PP film as electrodes and dielectric. It's components are sealed with flame redardant epoxy resin. It has cylindrical outline with high moisture resistance and stability.
Features of water pump Capacitor
| Model of CBB61 capacitor | CBB65 | CBB60 | CBB61 |
| Material of CBB61 capacitor | Metalized polypropylene | Metalized polypropylene | Metalized polypropylene |
| Filling of CBB61 capacitor | Oil | Resin/Oil | Resin |
| Can of CBB61 capacitor | Aluminum | Plastic/Aluminum | Plastic |
| Capacitance range of CBB61 capacitor | 2~100μF | 1~60μF | 1~35μF |
| Voltage range of CBB61 capacitor | 200-500VAC | 200-500VAC | 200-500VAC |
| Security level of CBB61 capacitor |
P1/P2
|
P0 | P0 |
| Anticipated operating life ofCBB61 capacitor | Class B Class C | ||
| Standard of CBB61 capacitor | GB 3667 , IEC 60252 , IEC 61048/61049 |
Applications of ac motor Capacitor
Broadly applied to AC single-prase motor at 50Hz or 60Hz for washing machines and high efficiency compressors of refrigerators.
