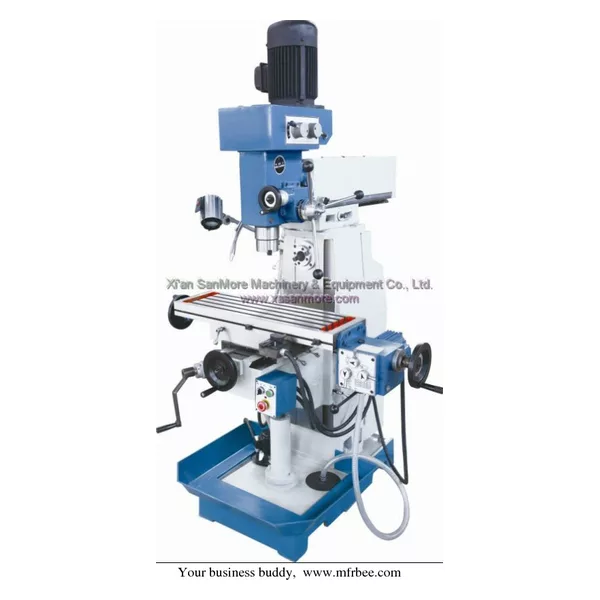

ZX7550CW Drilling and Milling Machine
Product Quick Detail
- Packaging
- Wooden case or negotiation
- Delivery
- 180 Days
Specifications
ZX7550CW Drilling and Milling Machine
Specifications: ZX7550CW
Max. drilling dia. (mm): 50
Max. end milling width (mm): 100
Max. vertical milling dia (mm): 25
Max. tapping dia. (mm): M16
Distance from spindle nose to table surface: 70-420
Spindle speed range: 110-1760V, 58-1355H
Spindle travel: 120
Table size: 800*240
Table travel: 400*230
Overall dimensions (mm): 1290*1220*2100
Motor (KW): 0.85/1.5(v), 1.5 (H)
N.G/G.W (kg): 970/1120
Note: Due to restrictions on parameter table on this B2B platform, so we cannot provide clear parameter table. But if you want to know more about our products, please contact frankliang2008 ！
