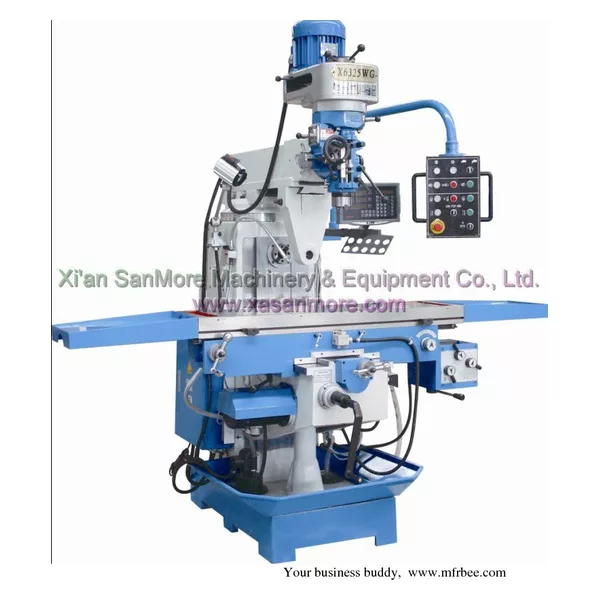

X6325WG Vertical and Horizontal Turret Milling Machine
Product Quick Detail
- Packaging
- Wooden case or negotiation
- Delivery
- 180 Days
Specifications
X6325WG Vertical and Horizontal Turret Milling Machine
Main specifications: X6325WG
Table size (mm): 1250*320
Table travel (mm): 800*300*300
Overall dimension (mm): 1655*1650*2300
Spindle taper (mm): ISO30/R8 (ISO40)
Spindle drilling diameter(mm): 15
Spindle quill travel(mm): 127
Spindle speeds:
Low (r/min): 80-2720
High(r/min): 160-5400
Distance from spindle to table surface(mm): 100-490
Left right: +/-90 degree
Before behind: +/-45 degree
Voltage: 380V (changeable as required)
Frequency: 50Hz
Motor: 3Hp
Note: Due to restrictions on parameter table on this B2B platform, so we cannot provide clear parameter table. But if you want to know more about our products, please contact frankliang2008 ！
- Country: China (Mainland)
- Business Type:
- Market:
- Founded Year:2013
- Address:9F, Shaanxi Investment Mansion, No.45, Tangyan Road, Xi\'an
- Contact:Mr. Frank Liang
