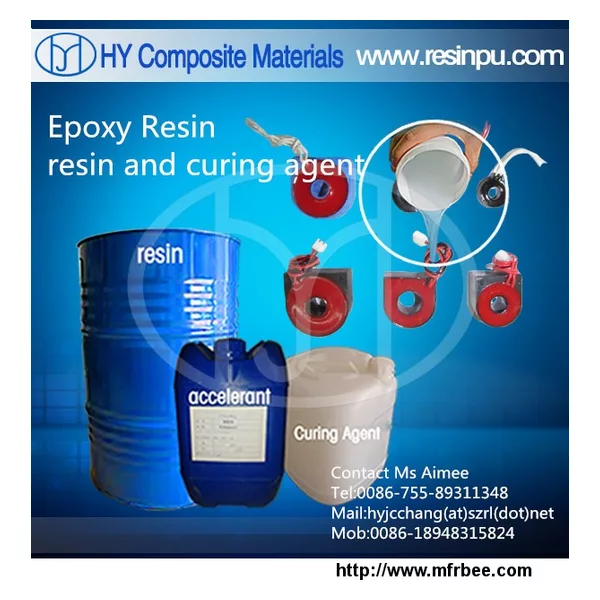

HY301#Epoxy Resin
1. Description
HY301# epoxy resin is the most widely and largest quantity needed ,It is used by two components, resin and curing agent, with the mix ratio of 2: 1 ( Resin : curing agent 2: = 1) . Particularly suitable for the Insulation of mica material, epoxy glass steel insulating board and the reinforcing material. Because of its moderate viscosity, It is particularly suitable as a glass steel anti-corrosion lining material hand lay up method, such as for : large cement tank, storage tank, tank iron requirements of anti-corrosion. With room temperature curing agent , easy Operation by hand, and the glass cloth firmly stuck in the lining material surface, the formation of epoxy glass steel anti-corrosion layer. So it is widely used in chemical factory,winery, sewage treatment device corrosion occasion. HY301 epoxy resin is suitable for the preparation of solvent free or less solvent coating, strong anti-corrosion ability , small environmental pollution.
2. Application
It is particularly suitable as a glass steel anti-corrosion lining material , such as for : large cement tank, storage tank, tank iron requirements of anti-corrosion. With room temperature curing agent, easy Operation by hand, and the glass cloth firmly stuck in the lining material surface, the formation of epoxy glass steel anti-corrosion layer. So it is widely used in chemical factory,winery, sewage treatment device corrosion occasion.
3. Technical Parameters
Mix Ratio: 2: 1
Color :A: Light Yellow; B: White
Appearance: no visible mechanical impurity / liquid Form
Epoxide Value(eq/100g): 0.41—0.47
Unhydrolytic Chlorine(eq/100g):0.03
Hydrolytic Chlorine(eq/100g): 0.014
Volatile(%) : ≤1
Colour : ≤6
Softening Point(℃): 12--20
4. Characteristics
Moderate viscosity
Strong corrosion resistance
The construction of small environmental pollution
Manual operation
5. Operation instructions
1. Clean the Surface of your products, make it clean and dry,
2. Evenly mixing the resin and cure agent at ratio of 2:1,
3. Brush the mixed resin on the surface of your products evenly , and then put a layer of Fiberglass , then brush a layer of resin , then repeat the ways above.
6. Warm tips :
1 It is forbidden to pour back the material into the Original packages even it is unused ;
2 construction to be dry and well ventilated space, Far away from the fire source;
3 stored in a cool dry place,Far away from light , and close the packages well .
4 Don’t contact with skin or eyes , Otherwise clean the skin with alcohol scrub, and wash with plenty of water and go to hospital in necessary
7.Package
20KG/drum package
220KG/drum package
8. Shelf life
Six (6) months when stored under dry and cool place by original package under 25℃
