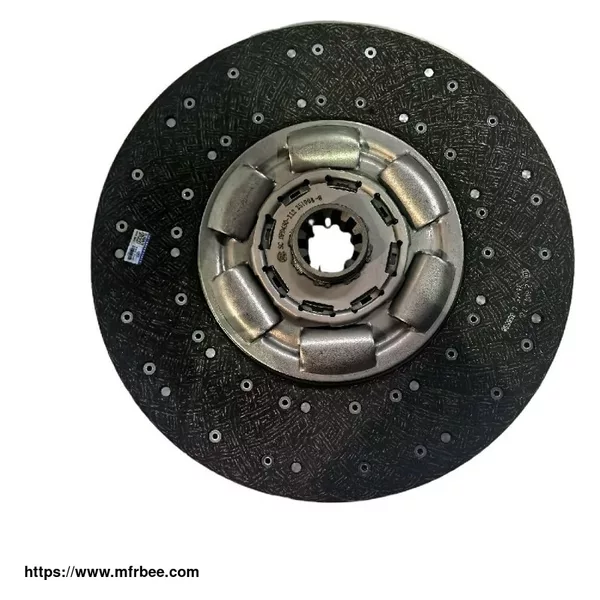

430MM Clutch Driven Disc Assembly

Clutch products include 18 series, 700 kinds of automotive clutch products, Product specification isФ180 mm-Ф430 mm, transfer torque capacity of 80N.m to 5400N.m, coveringdomestic heavy, medium, passenger, light, car, micro and other models.

1.LARGE-DIAMETER FRICTION PLATE：

The φ260 mm inner and φ430 mm outer diameter friction surface offers a large contact area, enhancing torque, heat dissipation, and wear resistance.

2.STABLE, SMOOTH ENGAGEMENT

Tuned friction characteristics reduce judder, vibration, and noise during clutch engagement, improving comfort and control.

3.HEAVY-DUTY CONSTRUCTION FOR COMMERCIAL VEHICLES：

Engineered for heavy trucks and Tractor Truck, with robust structure to withstand starts, climbing, and high-load driving.

4.HIGH DURABILITY & LONG SERVICE LIFE：

High-quality materials and precision manufacturing offer resistance to thermal stress, abrasion, and fatigue, extending replacement intervals.

***Superior Torque Transmission and Drive Performance

Breaking Torque Limits: Its high-torque diaphragm spring clutch achieves a torque transmission capacity of 4,920 Nm, significantly exceeding the common industry level of 4,200–4,400 Nm in China. This fully meets the core demands of commercial vehicle heavy-duty applications.

Efficient Drive Design: Products such as the DSP430 pull-type diaphragm spring clutch relocate the diaphragm spring support point to the outer end and adopt a unique pull-type release mechanism. Compared to push-type products of the same size, torque capacity is increased by 30–50%, with higher release efficiency, reduced pedal free travel and noise, and significantly improved shift performance.

***Reliable, Durable, and Widely Compatible

Long Lifespan and High Stability: Through material and process improvements—such as using new alloy steel with grain size refined to grade 8—fatigue resistance is enhanced by 20%, and the product has passed 100,000 cycles of durability testing. The AMT/hybrid clutch control module adapted for Yutong’s 140-ton hybrid mining truck demonstrates outstanding stability under harsh conditions including high/low temperatures, high altitude, and heavy loads. With fewer parts and a simple structure, assembly is convenient, and service life is further extended.

TECHNICAL PARAMETERS

Product Name: Clutch Driven Plates Assembly

Product Model: WG9925160400

Application: Heavy Duty Trucks & Tractor Truck

Certifications: ISO/TS16949:2002 & Other

Material: Steel

Clutch Component: Clutch Disc

Number Of Teeth * Major Diameter * Inner Diameter Of Friction Plate * Outer Diameter Of Friction Plate: 10×φ52.3×φ260×φ430

Product Torque: 4460N.m±10%

Turck Model: Tractor Truck 550 Hp FAW Jiefang J6/JH6/J6P & Howo

Reference Code:

1601310-53N-C00

1601310-50P-C00

DZ93189160359
