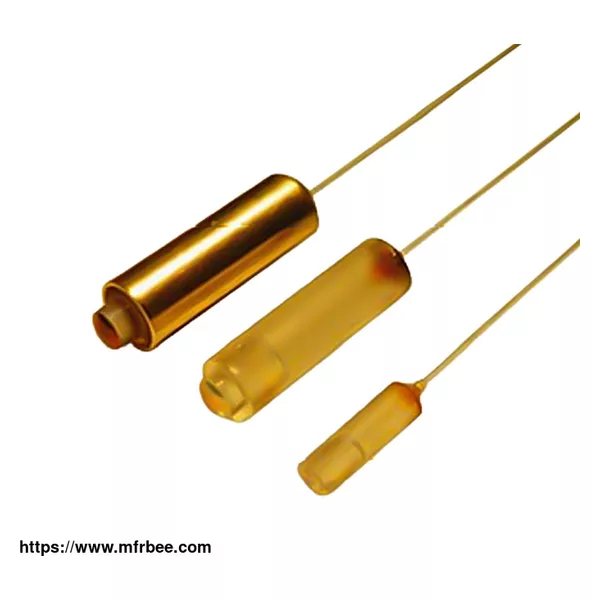

Polarization Maintaining Fiber Collimator(Long Working Distance)

Specificationsjavascript:nicTemp();

a.Φ3.2xL14.5mm,Φ3.2xL18mm,Φ4.0xL20mm,Φ5.0xL26mm,Φ6.0xL28mm(Gold Plated Tube:SUS304 Material).

b.Insertion loss is the coupling efficiency of a pair of collimators；c.Fiber Type:Corning PM13-U25D;d.Fiber Type:Corning PM14-U25D；f.Fiber Type:Corning PM15-U25D.

*Above specifications are for devices without connectors.

*For device with connector, IL is 0.5dB higher, RL is 5dB lower,and ER will be 2dB lower.

*The default connector key is Narrow key 2.0±0.02mm for FC/PC or FC/APC;The default connector key is aligned to slow axis.

*The default Fiber Length Tolerance:0.3±0.05m,0.5±0.05m,1.0+0.05/-0.10m,1.5+0.05/-0.10m.

*Other specifications can be made on customer request.

Package Dimensions
