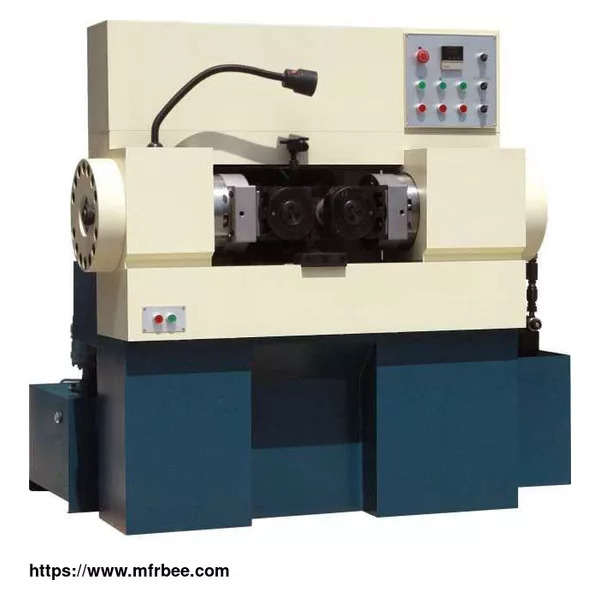

FEDA FD-25T Auto Feeding&Bolt Thread Rolling Machine
Product Quick Detail
The FEDA FD-25T Auto Feeding Thread Rolling Machine efficiently produces precision threads on bolts & fasteners. Featuring automatic feeding, adjustable speed, and a robust 250KN rolling pressure. Handles 12-80mm diameter workpieces with 1.0-8mm pitch. Easy to operate, maintain, and CE/ISO9001 certified. Ideal for high-volume thread rolling.
- Place Of Origin
- China
- Minimum Order
- 1
- FOB Price
- USD $22,950.00 / Piece
- Packaging
- Wooden case，1 set in 1 case.
- Delivery
- 30 Days
Specifications
1. Automatic feeding with adjustable brackets
2. Speed is adjustable for different products
3. 54mm hole diameter for SKD11/DC53 thread rolling dies
4. Max. Rolling pressure is about 250KN
5. It is easy to operate and maintain the machine
6. CE, ISO9001-2008
Specification
Working diameter 12-80mm
Thread pitch 1.0-8mm
Thread length In feed or Thru feed
Spindle speed 16/27/37/62rpm (variable speed)
Outside diameter of rolling die 170-220mm
Inside diameter of rolling die 75mm
Thickness of rolling die 160mm
Feed stroke 0-12mm
Main motor 11KW
Hydraulic motor 3KW
Max rolling pressure 25T
Supply voltage 380V 3P 50Hz
Weight(reference) 3560(KG)
Package Dimension(L*W*H) 1630*1650*1750mm
Dimension(L*W*H) 1580*1600*1650mm
