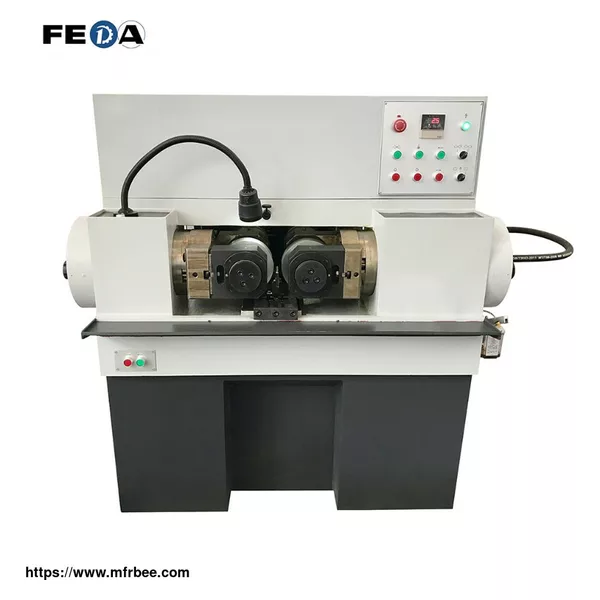

FEDA FD-20T Heavy Duty Rolling Machinery High Speed Screw Making Machine
Product sourcing details
FEDA FD-20T Heavy Duty Rolling Machinery High Speed Screw Making Machine. This automatic feeding machine features adjustable brackets and variable speed (28/35/45/56rpm). It boasts a 54mm die hole, 200KN max rolling pressure, and is easy to operate. Perfect for producing screws with diameters from 10-70mm and thread pitches of 1.0-6mm. CE & ISO9001 certified.
- FOB Price
- USD $10,900.00 / Piece
- Place Of Origin
- China
- Minimum Order
- 1
- Packaging
- Wooden case，1 set in 1 case.
- Delivery
- 30 Days
Specifications
1. Automatic feeding with adjuatable brackets
2. Speed is adjutable for different products
3. 54mm hole diamter for SKD11 thread rolling dies
4. Max. Rolling pressure is about 200KN
5. It is easy to operate and maintain the machine
6. CE, ISO9001-2008
Specification
Working diameter 10-70mm
Thread pitch 1.0-6mm
Thread length In feed or Thru feed
Spindle speed 28/35/45/56rpm (variable speed)
Outside diameter of rolling die 200mm
Inside diameter of rolling die 75mm
Thickness of rolling die 140mm
Feed stroke 0-12mm
Main motor 7.5KW
Hydraulic motor 3KW
Max rolling pressure 20T
Supply voltage 380V 3P 50Hz
Weight(reference) 2800(KG)
Package Dimension(L*W*H) 1600*1510*1750mm
Dimension(L*W*H) 1550*1460*1650mm
