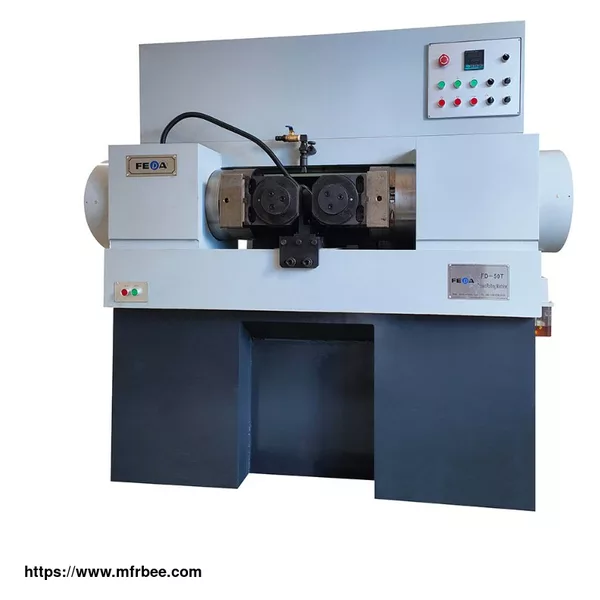

FEDA FD-50T Steel Rod & Solid bar Thread Machine
Product Quick Detail
Get precise and efficient threading with the FEDA FD-50T Steel Rod & Solid Bar Thread Machine. This heavy-duty machine, boasting a 500KN rolling pressure, automatically feeds materials within a 12-110mm diameter range. Featuring adjustable speed, SKD11 dies, and simple operation, the FD-50T delivers reliable thread pitches from 1.0-10mm. CE & ISO9001 certified.
- Place Of Origin
- China
- Minimum Order
- 1
- FOB Price
- USD $34,650.00 / Piece
- Packaging
- Wooden case，1 set in 1 case.
- Delivery
- 30 Days
Specifications
1. Automatic feeding with adjuatable brackets
2. Speed is adjutable for different products
3. 54mm hole diamter for SKD11 thread rolling dies
4. Max. Rolling pressure is about 500KN
5. It is easy to operate and maintain the machine
6. CE, ISO9001-2008
Specification
Working diameter 12-110mm
Thread pitch 1.0-10mm
Thread length In feed or Thru feed
Spindle speed 16/21/27/37/46/62rpm(variable speed)
Outside diameter of rolling die 170-240mm
Inside diameter of rolling die 85mm
Thickness of rolling die 18.5KW
Feed stroke 0-16mm
Main motor 18.5KW
Hydraulic motor 5.5KW
Max rolling pressure 50T
Supply voltage 380V 3P 50Hz
Weight(reference) 5100(KG)
Package Dimension(L*W*H) 2100*2230*1760mm
Dimension(L*W*H) 1650*1720*1700mm
