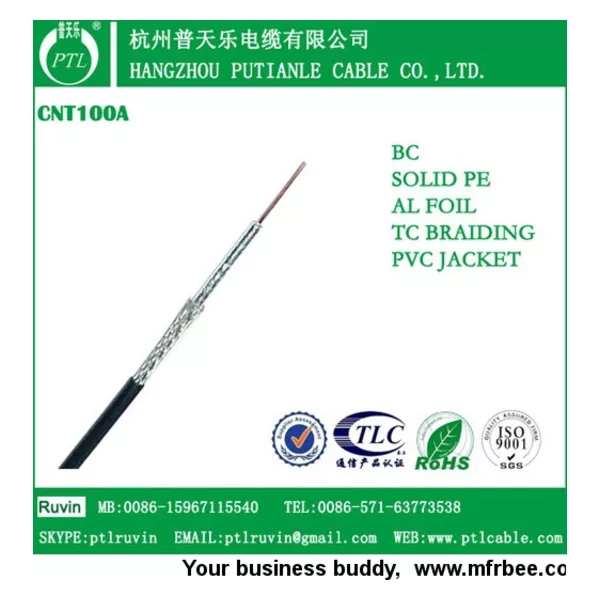

Cnt Cable CNT100A
Product sourcing details
Supplier: Hangzhou Putianle Cable Co.,Ltd.
Purchasing information
- Lead time
- 15 Days
Please confirm with the supplier: Model / reference, Key specifications / compatibility, Minimum order, Samples, Export markets, Supply capacity.
Specifications
CNT100A
Construction Specification
Item Material Diameter(mm/inch)
1.Inner conductor Bare Copper 0.46/0.018
2.Dielectric Solid Polyethylene 1.52/0.060
3.Outer conductor Bonded AL Foil+TC Braiding Nom.2.11/0.083
4.Jacket PVC or PE 2.79/0.110
Electrical Characteristics
1.Capacitance(pF/m) 101.1
2.Impedance(Ω) 50
3.Velocity(%) 66
4.Inner Conductor DC Resistance(Ω/km) 108/266
5.Outer Conductor DC Resistance(Ω/km) 31.2
6.Jacket Spark(kVrms) 2000
http://www.rg6u.com
Construction Specification
Item Material Diameter(mm/inch)
1.Inner conductor Bare Copper 0.46/0.018
2.Dielectric Solid Polyethylene 1.52/0.060
3.Outer conductor Bonded AL Foil+TC Braiding Nom.2.11/0.083
4.Jacket PVC or PE 2.79/0.110
Electrical Characteristics
1.Capacitance(pF/m) 101.1
2.Impedance(Ω) 50
3.Velocity(%) 66
4.Inner Conductor DC Resistance(Ω/km) 108/266
5.Outer Conductor DC Resistance(Ω/km) 31.2
6.Jacket Spark(kVrms) 2000
http://www.rg6u.com
- Company: Hangzhou Putianle Cable Co.,Ltd.
- Country: China (Mainland)
- Address: Hengfan Industrial Zone, Lin'an Hangzhou, Zhejiang, China
- Contact: mj mj
